Remove/Install Wide Open Throttle Vent Line - AR01.20-P-0020MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247 with code M016 (Uprated Engine)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove upper Engine cover. | ||
| AP01.10-P-2405-01C | |||
| 2 | Remove charge air cooler. | AR09.41-P-0105MFC | |

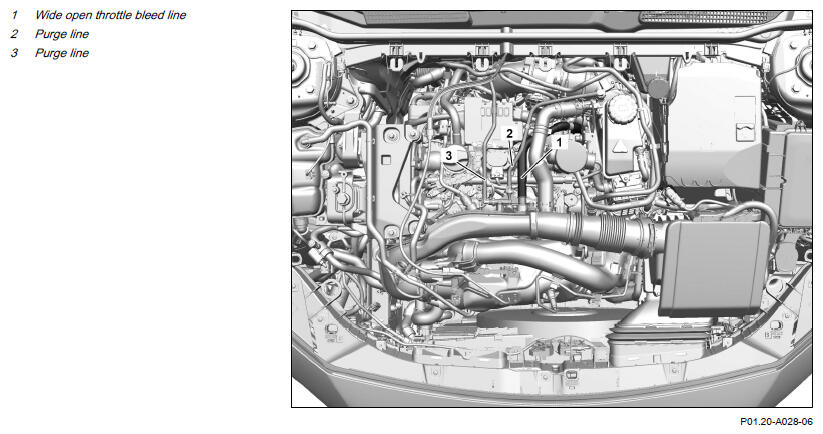

| 3 | Remove the purge line (2) and seal the openings with suitable stop plugs. | Fig 2 | |
| 4 | Remove the purge line (3) from the full-load bleed line (1) and seal the openings with suitable stop plugs. | Fig 2 | |

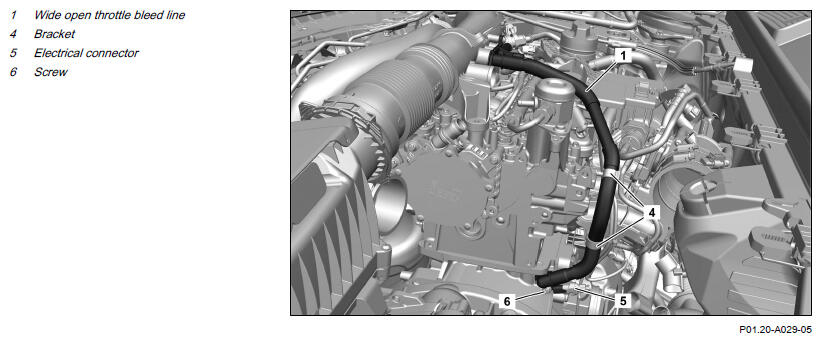

| 5 | Release and disconnect the electrical connector (5). | Engine 260 in model 118, 177, 247 with code 460 (Canada version) with code M016 (Uprated Engine) Engine 260 in model 118, 177, 247 with code 494 (US version) with code M016 (Uprated Engine) Engine 260 in model 118, 177, 247 with code 835 (South Korea version) with code M016 (Uprated Engine) Engine 260 in model 118, 177, 247 with code 945 (China Stage 6 exhaust treatment) with code M016 (Uprated Engine) | |
| 6 | Unclip the full-load bleed line (1) from the holders (4). | ||
| 7 | Remove screw (6). | ||
| 8 | Remove the full-load bleed line (1) and seal the openings with suitable stop plugs. | ||
| Fig 2 | |||
| Fig 1 | |||
| 9 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform Engine test run. While doing so, check Engine for proper operation and leak tightness. | ||
| 11 | Install upper Engine cover. | ||
| AP01.10-P-2405-01C |
