Remove/Install Tensioning Rail Bolt And Slide Rail Bolt - AR01.30-P-5800-21MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 133 in model 117, 156, 176

Engine 260 in model 118, 177, 247

Engine 270 in model 117, 156, 176, 242, 246.2

Fig 1: Identifying Puller (605 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller (270 589 01 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Insertion Tool (270 589 02 33 00)

Courtesy of MERCEDES-BENZ USA

Removal

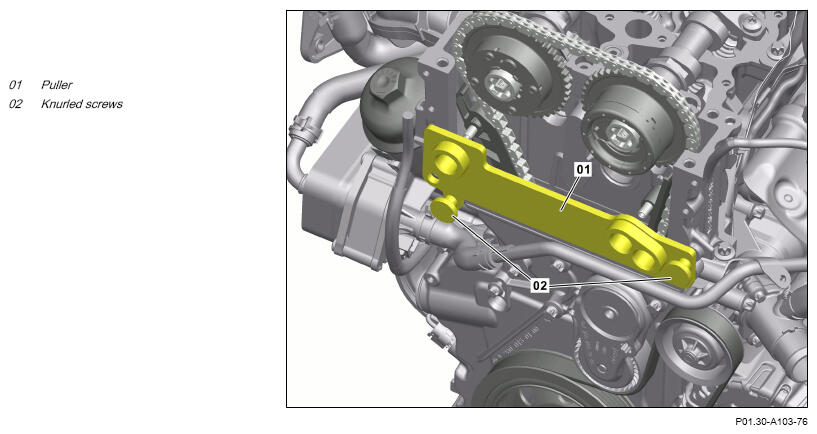

Attach puller (01) to cylinder head with knurled screws (02).
Shown on Engine M260

Courtesy of MERCEDES-BENZ USA

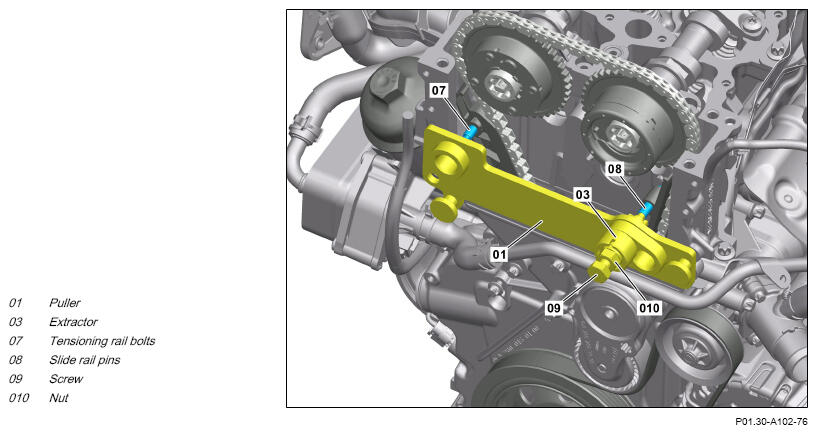

Insert extractor (03) into corresponding bore of puller (01).
Screw, screw (09) of extractor (03) into tensioning rail bolt (07) or slide rail pin (08).
Turn nut (010) of extractor (03) clockwise and pull out tensioning rail bolt (07) or slide rail pin (08)
Remove puller (01) from cylinder head.
Shown on Engine M260

Courtesy of MERCEDES-BENZ USA

Installation
Cover chain shaft with suitable rag.

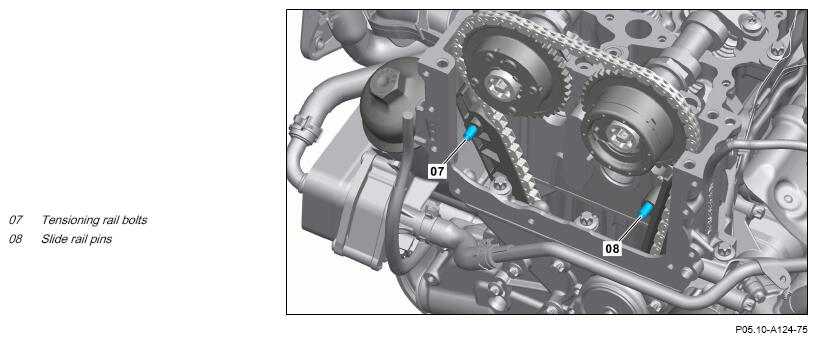

Position tensioning rail bolt (07) and slide rail pin (08).

Thread of tensioning rail bolt (07) or slide rail pin (08) must point outward.

Shown on Engine M260

Courtesy of MERCEDES-BENZ USA

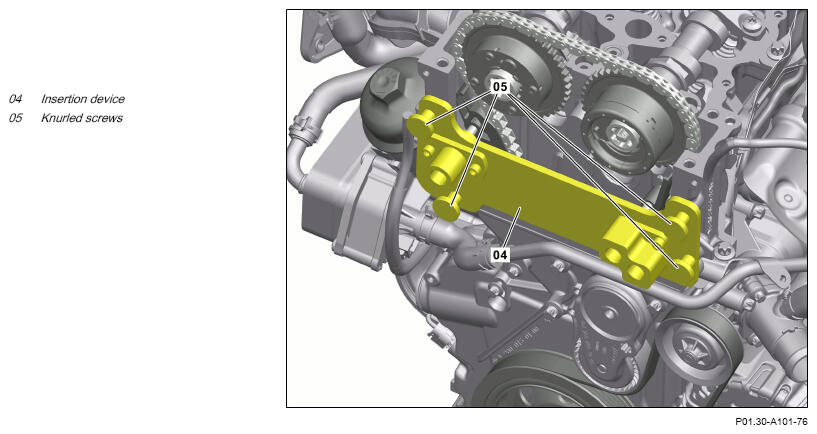

Attach insertion device (04) to cylinder head with knurled screws (05).
Shown on Engine M260

Courtesy of MERCEDES-BENZ USA

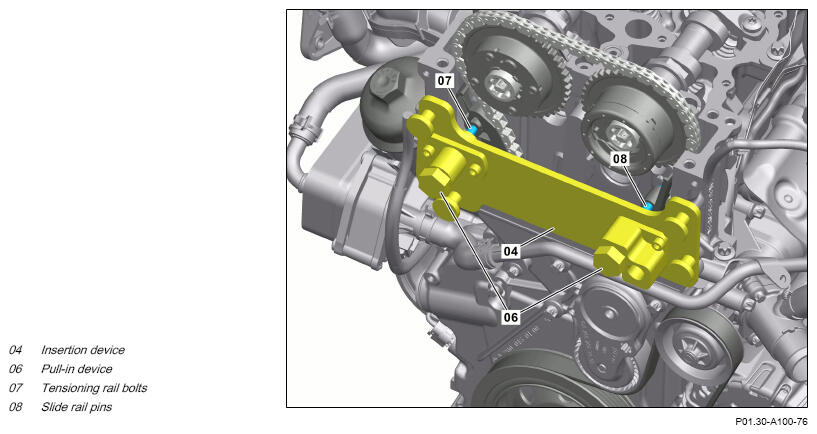

Screw pull-in devices (06) of insertion device (04) into corresponding thread.
Screw in pull-in devices (06) up to end stop of insertion device (04).

The pull-in devices (06) adjust the correct installed dimension of the tensioning rail bolt (07) or slide rail pin (08).
Remove insertion device (04) from cylinder head.
Remove rag above chain shaft.
Shown on Engine M260

Courtesy of MERCEDES-BENZ USA
