Remove/Install Full-Load Crankcase Ventilation System - AR01.20-P-0025MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247 except code M016 (Uprated Engine)
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. |
AS07.16-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove upper Engine cover. | ||
| AP01.10-P-2405-01C | |||

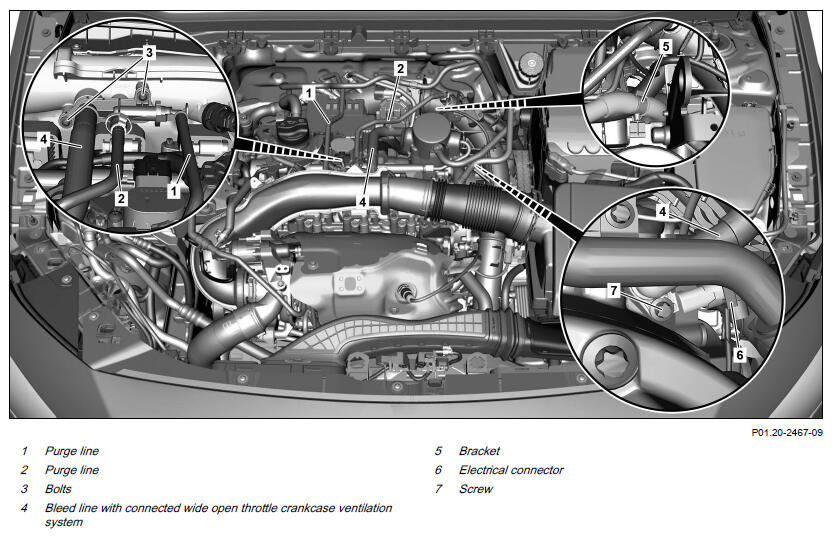

| 2 | Release and disconnect purge lines (1, 2). | ||
| 3 | Unclip and remove purge lines (1, 2). | ||
| 4 | Seal exposed connections using suitable plugs. | Fig 1 | |
| 5 | Remove screw/bolts (3). | ||
| 6 | Remove bleed line with connected wide open throttle crankcase ventilation system (4) with connected adapter from clean air line and unclip from bracket (5) at cylinder head cover. | ||
| 7 | Remove upper section of charge air line between charge air cooler and charge-air distributor. | AR09.41-P-1331MFC | |
| 8 | Release and disconnect electrical connector (6). | Engine 260 in model 177 with code 460 (Canada version) except code M016 (Uprated Engine) Engine 260 in model 177 with code 494 (US version) except code M016 (Uprated Engine) Engine 260 in model 177 with code 835 (South Korea version) except code M016 (Uprated Engine) Engine 260 in model 177 with code 945 (China Stage 6 exhaust treatment) except code M016 (Uprated Engine) |
|
| 9 | Unscrew bolt (7). | ||
| 10 | Remove wide open throttle crankcase ventilation system at bottom from housing. | ||
| 11 | Install in the reverse order. |
