Bolt Plan For Timing Case Cover - AR01.40-P-8000-01MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

CRANKCASE, TIMING CASE COVER, END COVER

Number Designation Engine 260
BA01.40-P-1001-01K Bolt, timing case cover to crankcase M6   Nm 9
M8 Stage 1 Nm -
Stage 2 Nm -
M10   Nm -
  1. Tighten screws (1 to 10) in the specified order TORQUE SPECIFICATION .

    IMPORTANT Loosen the screws (1 to 10) in reverse order.

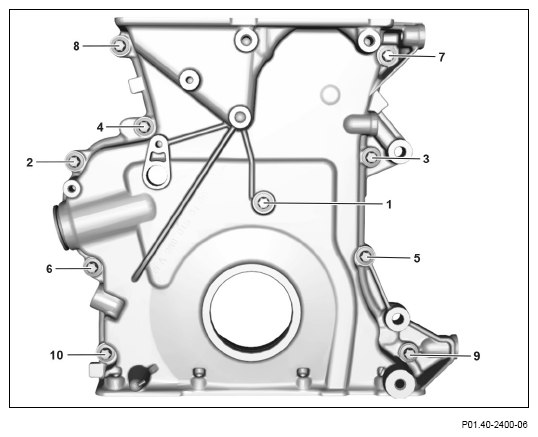

    G14688219Courtesy of MERCEDES-BENZ USA
