(Remove/Install Oil Engine Separator - AR01.20-P-9750MFC)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247 up to model year 2022 except code 460 (Canada version) except code 494 (US version) except code 835 (South Korea version) except code 945 (China Stage 6 exhaust treatment)

Courtesy of MERCEDES-BENZ USA

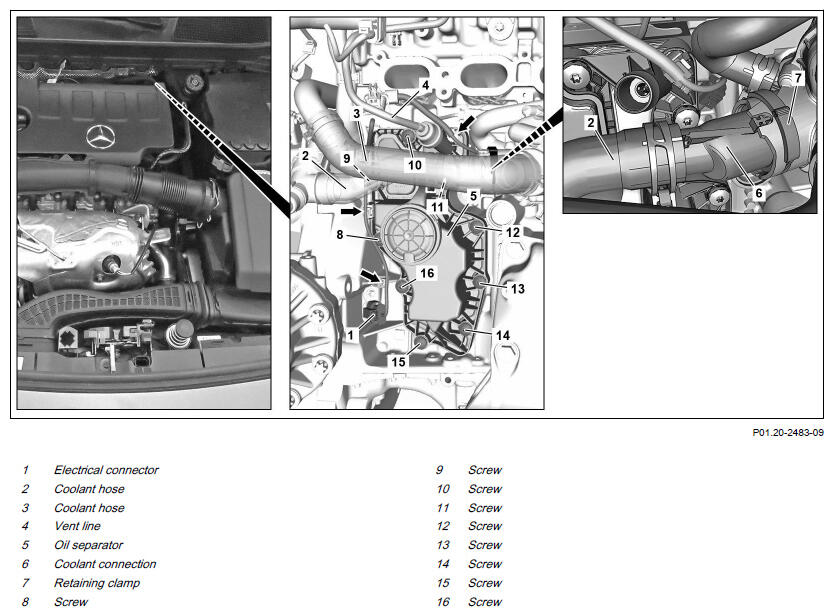

Shown on model 177 with Engine 260 without code M016 (performance-enhanced Engine)

	Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove charge-air distributor.	Only install lower Engine compartment paneling after leak test. Do not install upper Engine cover until after the leak test.	AR09.41-P-8683MFC
2	Remove bleed line (4) from oil separator (5) and seal openings with suitable stop plugs.	Replace sealing ring. Make sure that sealing ring is seated correctly on bleed line (4). Record plug	Fig 3
3	Remove coolant hose (3) and seal openings with protective covers.	Commercially available devices/Tools Hose clamp pliers Set of protective covers	Fig 2
4	Remove retaining clamp (7), remove coolant hose (2) and coolant connection (6) from coolant thermostat, and place to one side.
5	Seal openings using protective cover.	Set of protective covers	Fig 1
6	Release and disconnect electrical connector (1) from crankshaft Hall sensor (B70).		AR15.12-P-2136MFC
7	Unclip electrical wiring harnesses from oil separator (5) and crankcase (arrows).
8	Remove screws (8 - 16) at oil separator (5) in reverse numerical order.	Observe numerical order. Bolt, oil separator to crankcase	*BA01.20-P-1002-03C
9	Remove oil separator (5).	The sealing surface should be free of grease and dust. Otherwise there may be adhesion problems. Replace seal. Make sure that seal of oil separator (5) is seated correctly.
10	Clean sealing surfaces.	Assembly cleaner	*BR00.45-Z-1028-04A
11	Install in the reverse order.
12	Read out fault memory and delete if necessary.
			AD00.00-P-2000-06MFA
13	Check Engine oil level and correct.
			AP18.00-P-1812MFA
	Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Perform Engine test run; while doing so, check Engine in area of oil separator (5) in terms of leak tightness.
15	Install lower Engine compartment lining.	Engine 260 in model 118, 177, 247 up to model year 2022 with code M016 (Uprated Engine) except code 460 (Canada version) except code 494 (US version) except code 835 (South Korea version) except code 945 (China Stage 6 exhaust treatment)	AR61.20-P-1105MFR
		Engine 260 in model 118, 177, 247 up to model year 2022 except code 460 (Canada version) except code 494 (US version) except code 835 (South Korea version) except code 945 (China Stage 6 exhaust treatment) except code M016 (Uprated Engine)	AR61.20-P-1105MFA
16	Install upper Engine cover.
			AP01.10-P-2405-01C
