Notes On Sealant Path For Timing Case Cover - AH01.40-P-1000-01MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260

Use only the sealant listed in the repair products.

Application temperature of the sealant is +7°C to +25°C.

Process the sealant within a period of 13 min to 15 minutes.

Clean sealing surfaces.

The sealing surfaces on the cylinder head cover must be dry, and free of dust, oil and grease.

Do not touch sealing surfaces with bare hands, wear protective gloves at all times.

Do not spread the sealant bead.

Interruptions during sealant application are not permissible.

Courtesy of MERCEDES-BENZ USA

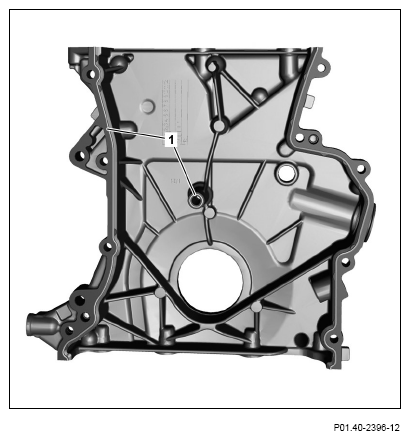

The lines (1) identify the sealant path.

Apply sealant only at specified surfaces in bead form with a height and width of 2.0 mm (+0.5 mm).

During the joining process the gap width between the sealing surfaces of component parts may be a max. 0.3 mm.

Install timing case cover within a period of 10 minutes after application of the sealant.

Remove any excess or leaking sealant from the adjacent sealing surfaces after tightening the cylinder head cover.

The components must not be lifted off each other again after the joining process.
