(Firing Order - AH01.00-Z-0100-02KOP)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All with Engine 608
Model 415, 420 with Engine 608
Model 415, 420, 470 with Engine 200
Model 470, 471 with Engine 699
Model 907 with Engine 642
Model 907, 910 with Engine 651

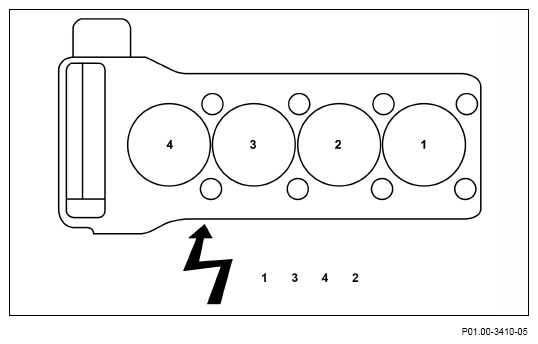

Cylinder 1 is located opposite the power output side.
Shown on Engine 699
Cylinder 1 is located opposite the power output side.
Shown on Engine 200
The 1st cylinder is located opposite the power output side in the direction of travel on the right-hand cylinder bank.
Shown on Engine 642
Cylinder 1 is located opposite the power output side.
Shown on Engine 651
The 1st cylinder is located on the side which delivers power.
Shown on Engine 608
