Disassemble And Assemble Steering Wheel - AR46.10-P-0102FRD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
with code L5C (Supersport steering wheel - leather deep-embossed)
except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT))
Model 167, 213, 236, 238, 243, 257
with code L5C (Supersport steering wheel - leather deep-embossed)

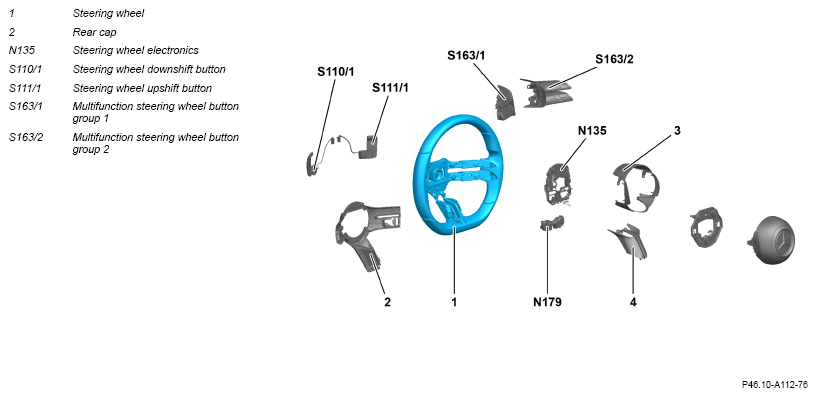

Shown on steering wheel (1) with code 266 (Distronic Plus lateral assistance (DTR+Q))
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Disassemble | |||
| 1 | Remove steering wheel (1). | Model 236 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100WT |
| Model 167 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100ME | ||
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 243 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100MFA | ||
| Model 213, 238 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100LW | ||
| Model 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100FR | ||
| 2 | Remove steering wheel electronics (N135). | Model 236 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0100S |
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 167, 213, 238, 243, 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0100FRD | ||
| 3 | Remove multifunction steering wheel button group 1 (S163/1) and multifunction steering wheel button group 2 (S163/2) from multifunction steering wheel. | Model 236 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0014S |
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 167, 213, 238, 243, 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0014FR | ||
| 4 | Remove steering wheel downshift button (S110/1) and steering wheel upshift button (S111/1). | AR27.60-P-0200FRD | |
| 5 | Remove rear cover (2). | ||
| Assemble | |||
| 6 | Install rear cover (2). | ||
| 7 | Install steering wheel downshift button (S110/1) and steering wheel upshift button (S111/1). | AR27.60-P-0200FRD | |
| 8 | Install multifunction steering wheel button group 1 (S163/1) and multifunction steering wheel button group 2 (S163/2) at multifunction steering wheel. | Model 236 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0014S |
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 167, 213, 238, 243, 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0014FR | ||
| 9 | Install the steering wheel electronics (N135). | Model 236 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0100S |
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 167, 213, 238, 243, 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR82.90-P-0100FRD | ||
| 10 | Install steering wheel (1). | Model 236 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100WT |
| Model 167 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100ME | ||
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 243 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100MFA | ||
| Model 213, 238 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100LW | ||
| Model 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AR46.10-P-0100FR | ||
| Concluding tasks | |||
| 11 | Connect vehicle diagnosis system and perform commissioning. | ||
| Model 167 with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06ME | ||
| Model 118, 177, 247 with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 243 with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06MFA | ||
| Model 238 with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06LWO | ||
| Model 213 with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-04B | ||
| Model 236, 257 with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06FR | ||
| 12 | Check steering wheel heater using diagnostic system. | Model 118, 177, 247 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 167, 213, 236, 238, 243, 257 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) |
|
| Model 167 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06ME | ||
| Model 236, 257 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06FR | ||
| Model 238 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-06LWO | ||
| Model 213 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) |
AD00.00-P-2000-04B | ||
| Model 118, 177, 247 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) except code U88 (AMG steering wheel buttons (AMG DRIVE UNIT)) Model 243 with code 443 (Heated steering wheel) with code L5C (Supersport steering wheel - leather deep-embossed) If there is a problem, ↓ Replace steering wheel (1). |
AD00.00-P-2000-06MFA | ||
| 13 | Perform function test of steering wheel buttons. |
