Remove/Install Trunk Lid - AR88.50-P-0001MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3
MODIFICATION NOTES
| 15.09.2021 | Limited continuation for replacing the trunk lid (1) added. | Operation step 9 |
Shown on vehicle with code 501 (360° camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove | |||
| 1 | Remove lamp unit (E3/1, E4/1) at trunk lid (1). | AR82.10-P-4927MFV | |
| 2 | Release and disconnect electrical connectors (8). | ||

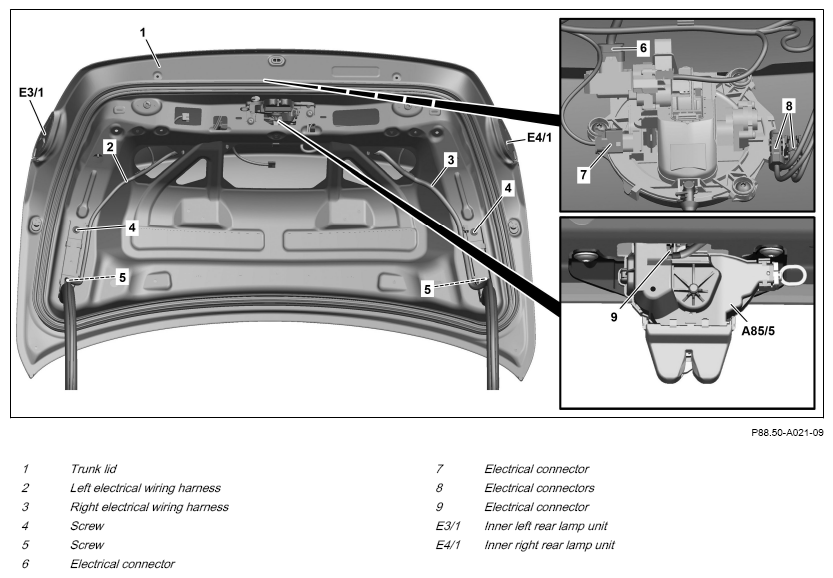

| 3 | Remove left electrical wiring harness (2) from trunk lid (1). | Fig 1 | |
| 4 | Release and disconnect electrical connectors (6, 7, 9). | ||
| 5 | Remove right electrical wiring harness (3) from trunk lid (1). | Fig 1 | |
| 6 | Remove bolts (5). | ||
| 7 | Loosen bolts (4). | ||
| 8 | Remove trunk lid (1) upwards. | ||
| Install | |||
| 9 | Attach trunk lid (1) with screws (4) to hinges. | If trunk lid (1) is to be replaced: ↓ Perform preparatory work for attaching the rear spoiler. Remove/install rear spoiler Model 118.3 with code 772 (AMG styling - Front spoiler, side skirts) |
AR88.30-P-0500MFE |
| 10 | Tighten screws (4, 5) to extent that trunk lid (1) can still be moved. | Aid of helper required. |
|
| 11 | Install right electrical wiring harness (3) on trunk lid (1). | ||
| 12 | Connect and lock electrical connectors (6, 7, 9). | ||
| 13 | Install left electrical wiring harness (2) on trunk lid (1). | ||
| 14 | Connect and lock electrical connectors (8). | ||
| 15 | Adjust trunk lid (1). | AR88.50-P-0002MFA | |
| 16 | Install lamp unit (E3/1, E4/1) on trunk lid (1). | AR82.10-P-4927MFV | |
| 17 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06MFA | |||
| Calibrate | |||
| 18 | Calibrate rear 360° camera with vehicle diagnosis system. | Model 118.3 with code 501 (360° camera) |
|
| AD00.00-P-2000-06MFA |
