Adjust Trunk Lid - AR88.50-P-0002MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Check | |||

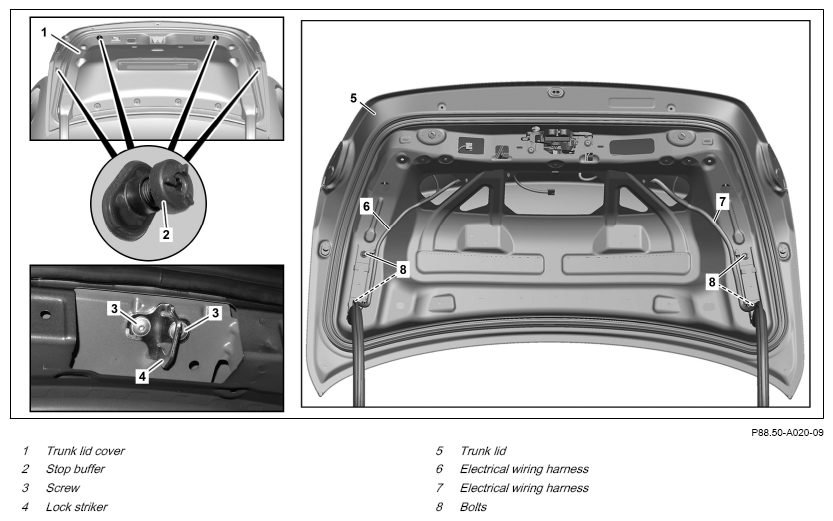

| 1 | Check gap dimensions at trunk lid (5). | AR60.00-P-0700-01MFC | |
| Trunk lid to rear window | *BE60.00-P-1023-01NA | ||
| Liftgate/trunk lid to inner tail lamp (bottom) | *BE60.00-P-1021-01NA | ||
| Liftgate/trunk lid to inner tail lamp (top) | *BE60.00-P-1020-01NA | ||
| Outside of taillamp to inside of taillamp | *BE60.00-P-1019-01NA | ||
| Liftgate/trunk lid to bumper at rear | *BE60.00-P-1016-01NA | ||
| Liftgate/trunk lid to side wall | *BE60.00-P-1015-01NA | ||
| Fig 1 | |||
| Remove | |||
| 2 | Remove rear-end center-section trim. | AR68.30-P-4786MFV | |
| 3 | Remove trunk lid trim (1). | AR68.30-P-8151MFV | |
| 4 | Release electrical wiring harnesses (6, 7) in area of screws (8). | Fig 2 | |
| Adjust | |||
| 5 | Release screws (8) at left and right hinge bracket. | ||
| 6 | Adjust trunk lid (5) in longitudinal and transverse direction. | AR60.00-P-0700-01MFC | |
| Trunk lid to rear window | *BE60.00-P-1023-01NA | ||
| Liftgate/trunk lid to inner tail lamp (bottom) | *BE60.00-P-1021-01NA | ||
| Liftgate/trunk lid to inner tail lamp (top) | *BE60.00-P-1020-01NA | ||
| Outside of taillamp to inside of taillamp | *BE60.00-P-1019-01NA | ||
| Liftgate/trunk lid to bumper at rear | *BE60.00-P-1016-01NA | ||
| Liftgate/trunk lid to side wall | *BE60.00-P-1015-01NA | ||
| Fig 1 | |||
| 7 | Tighten screws (8) at left and right hinge bracket. | *BA88.50-P-1001-03C | |
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 8 | Repair paint damage in area around hinge brackets with primer filler and/or touch-up paint pen. | ||
| Topical note | General notes on touch-up applicators and paint spray cans | AH98.00-P-9409-06A | |
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A | |
| 9 | Protect area around hinge brackets against corrosion. | ||
| Topical note | Notes on cavity preservation | AH97.20-P-0001-01B | |
| Cavity preservation (free of solvents), 1 liter | *BR00.45-Z-1003-05A | ||
| 10 | Fully screw in stop buffers (2). | ||
| 11 | Release screws (3) of lock striker (4). | ||
| 12 | Adjust height of trunk lid (5) by moving lock striker (4). | AR60.00-P-0700-01MFC | |
| Liftgate/trunk lid to bumper at rear | *BE60.00-P-1016-01NA | ||
| Fig 1 | |||
| 13 | Tighten screws (3) of lock striker (4). | *BA88.50-P-1004-03C | |
| Install | |||
| 14 | Attach electrical wiring harnesses (6, 7) in area of screws (8). | ||
| 15 | Install trunk lid trim (1). | AR68.30-P-8151MFV | |
| 16 | Install rear-end center-section trim. | AR68.30-P-4786MFV | |
| Adjust | |||
| 17 | Mark stop buffers (2) in contact area with chalk. | ||
| 18 | Unscrew stop buffers (2) until trunk lid (5) is resting on stop buffers (2) in closed status. | ||
| 19 | Release stop buffers (2) by a quarter turn. | ||
| Calibrate | |||
| 20 | Calibrate rear 360° camera with vehicle diagnosis system. | Model 118.3 with code 501 (360° camera) |
|
| AD00.00-P-2000-06MFA |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | ||
|---|---|---|---|---|
| BE60.00-P-1015-01NA | Liftgate/trunk lid to side wall | Dimension "M" | mm | 3, 5 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | ||
|---|---|---|---|---|
| BE60.00-P-1016-01NA | Liftgate/trunk lid to bumper at rear | Dimension "N" | mm | 6 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | ||
|---|---|---|---|---|
| BE60.00-P-1019-01NA | Outside of taillamp to inside of taillamp | Dimension "Q" | mm | 3, 5 (-0.5/+1) |
| For picture, see | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | ||
|---|---|---|---|---|
| BE60.00-P-1020-01NA | Liftgate/trunk lid to inner tail lamp (top) | Dimension "R" | mm | 1 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | ||
|---|---|---|---|---|
| BE60.00-P-1021-01NA | Liftgate/trunk lid to inner tail lamp (bottom) | Dimension "S" | mm | 1, 5 (-0, 5/+1) |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | ||
|---|---|---|---|---|
| BE60.00-P-1023-01NA | Trunk lid to rear window | Dimension "U" | mm | 7, 0 (± 2, 0) |
| For picture, see | AR60.00-P-0700-01MFC | |||
TRUNK LID
| Number | Designation | Model 118 | |
|---|---|---|---|
| BA88.50-P-1001-03C | Bolt, hinge bracket to trunk lid | Nm | 10 |
TRUNK LID
| Number | Designation | Model 118 | |
|---|---|---|---|
| BA88.50-P-1004-03C | Screw/bolt, lock striker to body | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation (free of solvents), 1 liter | A 000 986 72 70 10 |
