Retrofit Front And Rear Spoiler - AZ88.50-P-0006MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3 up to 6/1/23

except code 772 (AMG styling - Front spoiler, side skirts)

except code 830 (China version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Install
1	Paint rear spoiler (1).	Paint only paintable rear spoilers (1). Only use approved paints from Daimler AG.	AZ88.50-P-0005-01MFC

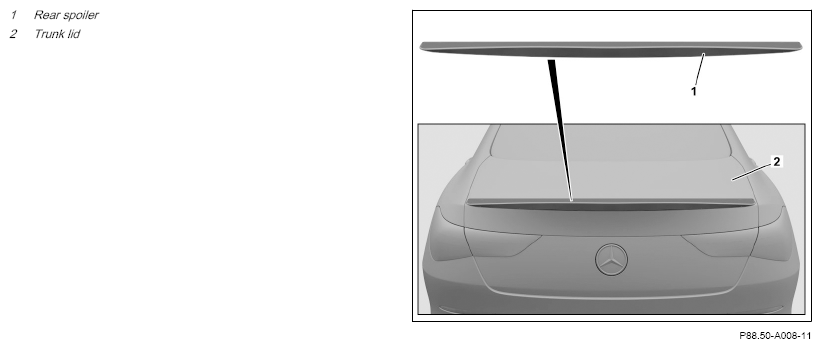

2.1	Attach painted rear spoiler (1) to the trunk lid (2).	Only if no rear spoiler (1) is yet attached to the trunk lid (2). When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur. Do not remove protective foil all at once. To increase processing reliability when installing rear spoiler (1), conclude by pressing rear spoiler (1) down on trunk lid (2) using clean cotton rag, starting center.	AZ88.50-P-0005-02MFC
		Cleaner	*BR00.45-Z-1025-04A
2.2	Attach carbon fiber look rear spoiler (1) to the trunk lid (2).	Only if no rear spoiler (1) is yet attached to the trunk lid (2). Model 118.3 (except 118.35) When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur. Do not remove protective foil all at once. To increase processing reliability when installing rear spoiler (1), conclude by pressing rear spoiler (1) down on trunk lid (2) using clean cotton rag, starting center.	AZ88.50-P-0010-01MFC
		Cleaner	*BR00.45-Z-1025-04A
3	Lift vehicle with lifting platform.
			AR00.60-P-1006A

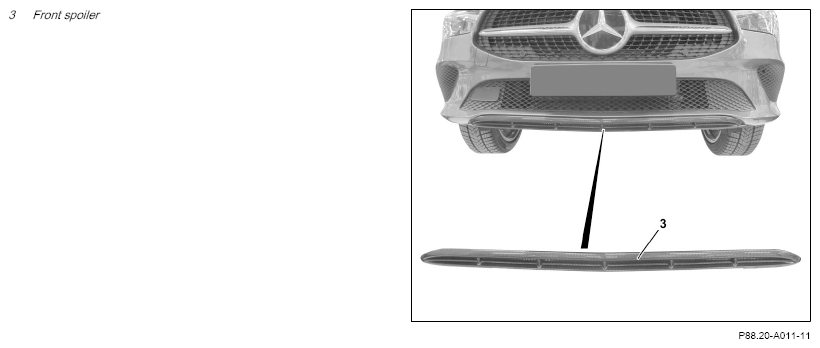

4	Attach the front spoiler (3).	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur.	AZ88.20-P-0018-01MFC
		Cleaner	*BR00.45-Z-1025-04A
5	Lower vehicle with vehicle lift.
			AR00.60-P-1006A
	Update Vehicle Documentation (VeDoc)
6	Attach note "Front spoiler and rear spoiler retrofitted as per AZ88.50-P-0006MFC" under field organization texts to DG 88.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see XENTRY Portal Parts information)	Parts kit Front spoiler	1
