Install Carbon Look Rear Spoiler On Trunk Lid - AZ88.50-P-0010-01MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3 (except 118.35)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

A helper is required to install rear spoiler (1).

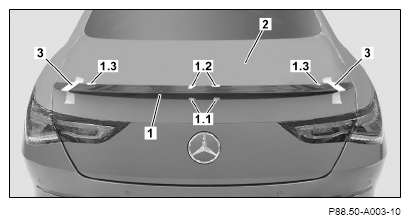

Position rear spoiler (1) on trunk lid (2) and mark position with adhesive tapes (3).

Ensure that distance between rear spoiler (1) and outer sides of trunk lid (2) is uniform.
Cut adhesive tapes (3) in gap between rear spoiler (1) and trunk lid (2).
When cutting tapes (3), ensure that surface of rear spoiler (1) and trunk lid (2) is not damaged.

Otherwise this could lead to visual impairment of the component surfaces or corrosion on the trunk lid (2).
Remove rear spoiler (1).
Clean trunk lid (2) in bonding area.
The bonding area on the trunk lid (2) must be free of dust and grease.

Otherwise adhesion problems may occur.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

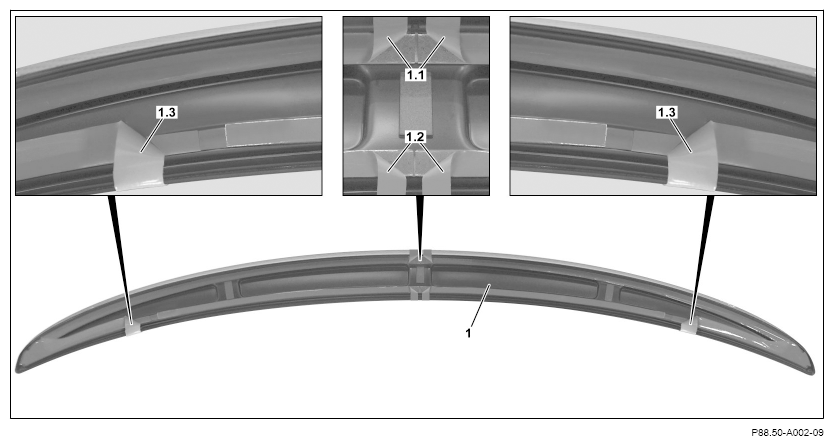

Remove protective foils (1.1, 1.2, 1.3) on adhesive strips starting at center of spoiler, remove slightly from ends and fold over at an angle of 45°.
Fix protective foils (1.1, 1.2, 1.3) in place with tape on outer side of rear spoiler (1).

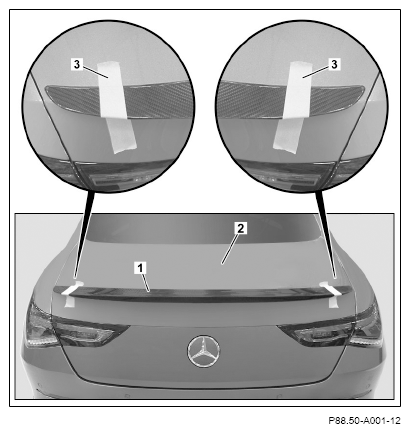

Carefully lay rear spoiler (1) down on trunk lid (2), align according to previously attached adhesive strips (3) and press on direction of travel.
Remove protective foils (1.1) in increments of approx.150 mm.

Remove protective foils (1.1) vertically downwards at an angle of 90°. In the interim, repeatedly press on rear spoiler (1).
Remove protective foils (1.2) in increments, in sections of in each case approx. 150 mm.

Remove protective foils (1.2) in direction of travel at an angle of 90°. In the interim, repeatedly press on rear spoiler (1).
Carefully remove protective foils (1.3) in succession in lateral direction.
Slightly press on rear spoiler (1) in area of side bondings.
Remove adhesive tape (3).
Firmly press on rear spoiler (1) with clean cotton rag toward outside starting at center of spoiler.
When pressing on, press directly on adhesive strips on spoiler (1). The maximum adhesive strength is only reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. rain, fog, frost, washing facility) or any mechanical stress within the first 24 h.

Otherwise adhesion problems may occur.
