Deactivate Transport Mode Prior To Vehicle Delivery - AR54.00-P-0001MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247

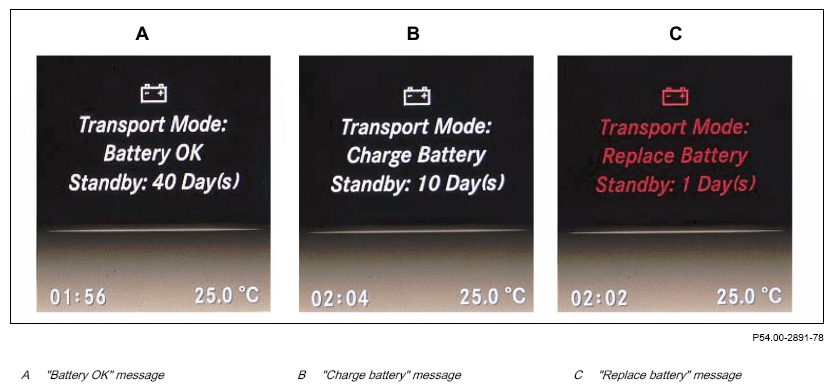

Shown here are the different system states in the instrument cluster with an active transport mode (Display always in English)
| Check | |||
| 1 | Switch on ignition (circuit 15) and check if the "Transport mode" message is shown in the instrument cluster. | Make sure that the instrument cluster shows the "Battery OK" (A) message before the deactivation. ↓ activate transport mode in the central controller unit (N10) again using the vehicle diagnosis system in the menu item "Actuation". |
|
| AD00.00-P-2000-06MFA | |||
| 2 | Charge battery. | If "Charge battery" (B) message is shown on the instrument cluster. | |
| Model 118, 177, 247 | AR54.10-P-1130MFA | ||
| Model 243 | AR54.10-P-1130EQA | ||
| 3 | Replace battery. | If "Replace battery" (C) message is shown on the instrument cluster. | |
| Model 118, 177, 247 except code B01 (48V technology) | AR54.10-P-0005MFA | ||
| Model 243 | AR54.10-P-0005EQA | ||
| Model 118, 177, 247 with code B01 (48V technology) | AR54.10-P-1134MFI | ||
| 4 | Document the residual service life shown on the instrument cluster. | ||
| Model 118, 177, 247 | AP00.20-P-1100B | ||
| Model 243 | AP00.20-P-1100D | ||
| Deactivation | |||
| 5 | Deactivate transport mode using button combination. | AR54.00-P-0001-01A | |
| 6 | Document deactivation of transport mode. | ||
| Model 118, 177, 247 | AP00.20-P-1100B | ||
| Model 243 | AP00.20-P-1100D |
