Adjust Rear-Axle Toe - AR40.20-P-0261P
Model 171, 172, 203
Model 209.3
except code P98 (Black Series)
Model 209.4
MODIFICATION NOTES
| 21.10.2020 | Assign specified suspension data online. | Operation step 1. |

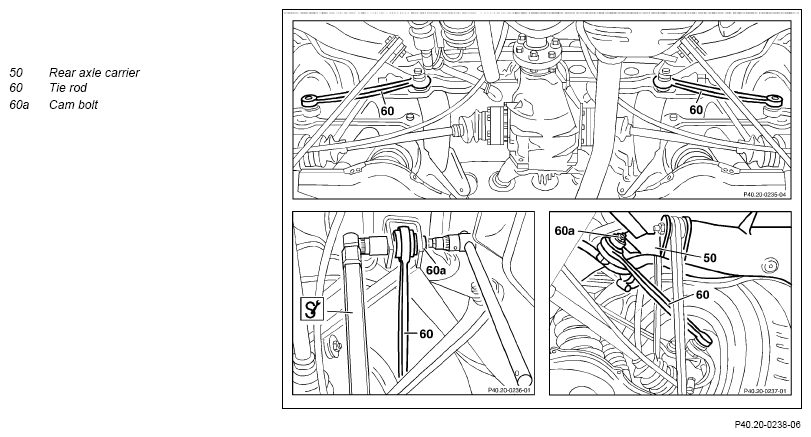

Example illustration
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Assign specified suspension data | |||
| 1 | Assign specified suspension data online. | Model 171 |
AR40.20-P-0001A |
| Adjust | |||
| 2 | Loosen nut of cam bolt (60a). | ||
| 3 | Adjust toe using cam bolt (60a). | Model 172 Total rear axle toe at vehicle level | *BE40.20-P-1001-10GA |
| Model 172 Permissible difference in rear axle toe between right and left sides of vehicle If the test specifications are not reached, | *BE40.20-P-1002-10GA | ||
| Replace tie rod (60). Model 171 |
AR35.20-P-0112V | ||
| Model 203 Model 209 except code P98 (Black Series) |
AR35.20-P-0112P | ||
| Model 172 | AR35.20-P-0109W | ||
| 4 | Tighten nut of cam bolt (60a). | Model 203 Model 209.3/4 except code P98 (Black Series) Self-locking nut, tie rod to rear axle carrier |
*BA35.20-P-1001-04A |
| *BA35.20-P-1002-04I |
TEST VALUES FOR REAR AXLE TOE
| Number | Designation | Model 172.403/447/448/457 up to model year 2015 except code 483/486 | Model 172.403/447/448/45 7 up to model year 2015 with code 483/486 | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10GA | Total rear axle toe at vehicle level | 0.35° | ∠° | - | - |
| 0.94° | ∠° | - | 0° 33' (±7') | ||
| 1.23° | ∠° | - | - | ||
| 1.31° | ∠° | - | - | ||
| 1.52° | ∠° | - | - | ||
| 1.91° | ∠°° | 0° 34' (±7') | - | ||
TEST VALUES FOR REAR AXLE TOE
| Number | Designation | Model 172.403/447/448/457 as of model year 2016 except code 483/486 Model 172.404/431/434/438 except code 483/486 |
Model 172.403/447/448/45 as of model year 2016 with code 483/486 Model 172.404/431/434/43 with code 483/486 |
||
|---|---|---|---|---|---|
| BE40.20-P-1001-10GA | Total rear axle toe at vehicle level | 0.35° | ∠° | - | 0° 33' (±7') |
| 0.94° | ∠° | - | - | ||
| 1.23° | ∠° | - | - | ||
| 1.31° | ∠° | 0° 34' (+7') | - | ||
| 1.52° | ∠° | - | - | ||
| 1.91° | ∠° | - | - | ||
TEST VALUES FOR REAR AXLE TOE
| Number | Designation | Model 172.466 AMG | Model 172.475 AMG | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-10GA | Total rear axle toe at vehicle level | 0.35° | ∠° | - | - |
| 0.94° | ∠° | - | - | ||
| 1.23° | ∠° | 0° 33' (+14') | - | ||
| 1.31° | ∠° | - | - | ||
| 1.52° | ∠° | - | 0° 33' (±14') | ||
| 1.91° | ∠° | - | - | ||
TEST VALUES FOR REAR AXLE TOE
| Number | Designation | Model 172.403/447/448/457 up to model year 2015 except code 483/486 | Model 172.403/447/448/45 7 up to model year 2015 with code 483/486 | |
|---|---|---|---|---|
| BE40.20-P-1002-10GA | Permissible difference in rear axle toe between right and left sides of. vehicle | ∠° | ±7' | ±7' |
TEST VALUES FOR REAR AXLE TOE
| Number | Designation | Model 172.403/447/448/457 as of model year 2016 except code 483/486 Model 172.404/431/434/438 except code 483/486 |
Model 172.403/447/448/45 7 as of model year 2016 with code 483/486 Model 172.404/431/434/43 8 with code 483/486 |
|
|---|---|---|---|---|
| BE40.20-P-1002-10GA | Permissible difference in rear axle toe between right and left sides of vehicle | ∠° | ±7' | ±7' |
TEST VALUES FOR REAR AXLE TOE
| Number | Designation | Model 172.466 AMG | Model 172.475 AMG | |
|---|---|---|---|---|
| BE40.20-P-1002-10GA | Permissible difference in rear axle toe between right and left sides of vehicle | ∠° | + 7' | + 7' |
TIE ROD
| Number | Designation | Model 171 | Model 203 | ||
|---|---|---|---|---|---|
| BA35.20-P-1001-04A | Self-locking nut, tie rod to rear axle carrier | Stage 1 | Nm | 70 | 70 |
| Stage 2 | ∠° | - | - | ||
TIE ROD
| Number | Designation | Model 209 | ||
|---|---|---|---|---|
| BA35.20-P-1001-04A | Self-locking nut, tie rod to rear axle carrier | Stage 1 | Nm | 70 |
| Stage 2 | ∠° | - | ||
TIE ROD
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA35.20-P-1002-04I | Self-locking nut, tie rod to rear axle carrier | Nm | 70 |
