Adjust Front Axle Toe - AR40.20-P-0264CW

Model 166, 172, 204, 207, 212, 218, 292

MODIFICATION NOTES

20.10.2020 Assign specified suspension data online. Operation step 1.

Shown with model 204.0

G13845794Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 except code M005 (4MATIC)

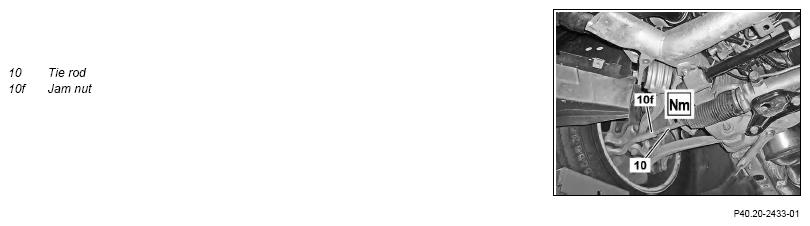

Fig 1: Tie Rod Components Location - Model 172 Shown On Model 204.0 Except Code M005
G13845795Courtesy of MERCEDES-BENZ USA

Shown on model 166

G11974443Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 except code M005 (4MATIC)

G11974444Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 except code M005 (4MATIC)

G13845798Courtesy of MERCEDES-BENZ USA
  Assign specified suspension data
1 Assign specified suspension data online. Model 166, 292
IMPORTANT To make it easier to assign the current suspension data, the specified suspension data can be assigned online using the vehicle identification number.		 AR40.20-P-0001A
INSPECT Check
2 Perform initial measurement. Model 166, 292 AR40.20-P-0200GQ
    Model 204 AR40.20-P-0200CW
    Model 172, 207, 212, 218 AR40.20-P-0200EW
  Adjust
3 Deactivate easy entry and exit feature for steering wheel. Model 166, 172, 204, 207, 212, 218, 292 with code 275 (Memory Package (driver's seat, steering column and mirror))
Model 172 with code 275 (Memory Package (driver's seat, steering column and mirror))
NOTES
The easy entry and exit feature for the steering wheel must be deactivated so that the steering wheel, e.g. when opening or closing the driver door, it doesn't move to another position.
Otherwise, the headliner or the windshield may be damaged if the holding device (055) is installed.		 AR54.30-P-1000-02W
4 Check center position of steering gear (arrow) and center position of steering wheel. j IMPORTANT The steering gear is at the center position (arrow) when the marking on the cover cap is aligned with the marking on the control valve housing.
If the center position of the steering gear (arrow) and the center position of the steering wheel are not in alignment, move steering wheel by a maximum of one tooth.
Model 204, 207		 AR46.10-P-0100CW
    Model 166, 172, 212, 218, 292 AR46.10-P-0100EW
5 Using holding device (055), fix steering wheel in center position; to do so, install holding device (055) in front of sun visor. TORQUE SPECIFICATION
The emblem in the steering wheel must be protected against damage.
Otherwise the holding device (055) may make an indent on the emblem.
    SPECIAL TOOL Retainer device Fig 2
6 Insert wheel spreader (030) between wheel inner sides, as shown, in direction of forward travel.
7 Counterhold tie rod (10) at hexagon and loosen counternut (10f).
8 Adjust toe by turning tie rod (10). Model 218 (except 218.367/368/374/375/376/391/392/393/394/967/968/974/975/976/991/992/993/994) with code 489 (AIRMATIC)
Model 218.3 (except 218.367/368/374/375/376/391/392/393/394) except code 489 (AIRMATIC)
Model 218.367/368/391/393/394/967/968/991/993/994 with code 489 (AIRMATIC)
Model 218.367/368/391/393/394 except code 489 (AIRMATIC)
Model 218.374 as of 12/1/11
Model 218.374 up to 11/30/11
Model 218.375
Model 218.376/392/976/992
Model 218.9 (except 218.967/968/974/975/976/991/992/993/994) except code 489 (AIRMATIC)
Model 218.967/968/991/993/994 except code 489 (AIRMATIC)
Model 218.974/975 Total front axle toe at vehicle level		 *BE40.20-P-1002-07R
    Model 212.0 (except 212.002/025/056/067/072/074/075/076/077/08/090/091/092/093/094/097) with code 485 (DIRECT CONTROL suspension)
Model 212.0 (except 212.002/025/056/067/072/074/075/076/077/08/090/091/092/093/094/097) with code 489 (AIRMATIC)
Model 212.0 (except 212.002/025/056/067/072/074/075/076/077/08/090/091/092/093/094/097) with code 677 (AGILITY CONTROL suspension)
Model 212.0 (except 212.002/025/056/072/074/075/076/077/092) with code 482 (Off-road comfort suspension)
Model 212.002 with code 482 (Off-road comfort suspension) except code P25 (BlueEFFICIENCY Edition)
Model 212.002 with code 485 (DIRECT CONTROL suspension) except code P25 (BlueEFFICIENCY Edition)
Model 212.002 with code 489 (AIRMATIC) except code P25 (BlueEFFICIENCY Edition)
Model 212.002 with code 677 (AGILITY CONTROL suspension) except code P25 (BlueEFFICIENCY Edition)
Model 212.002with code P25 (BlueEFFICIENCY Edition)
Model 212.025/056/072 with code 482 (Off-road comfort suspension) except code Z04 (Light armoring)
Model 212.025/056/072 with code 485 (DIRECT CONTROL suspension) except code Z04 (Light armoring)
Model 212.025/056/072 with code 489 (AIRMATIC) except code Z04 (Light armoring)
Model 212.025/056/072 with code 677 (AGILITY CONTROL suspension) except code Z04 (Light armoring)
Model 212.025/056/072 with code Z04 (Light armoring)
Model 212.067/08/090/091/093/094/097/267/28/291/293/294/297 with code 489 (AIRMATIC)
Model 212.067/08/090/091/093/094/097 with code 485 (DIRECT CONTROL suspension)
Model 212.067/08/090/091/093/094/097 with code 677 (AGILITY CONTROL suspension)
Model 212.074/077/274/277 as of 12/1/11, 212.075/275
Model 212.074/077/274/277 up to 11/30/11
Model 212.076/092/276/292
Model 212.1 with code 482 (Off-road comfort suspension)
Model 212.1 with code 485 (DIRECT CONTROL suspension)
Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 482 (Off-road comfort suspension)
Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 485 (DIRECT CONTROL suspension)
Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 489 (AIRMATIC)
Model 212.2 (except 212.267/274/275/276/277/28/291/292/293/294/297) with code 677 (AGILITY CONTROL suspension)		 *BE40.20-P-1001-07BA
    Model 207 (except 207.367/388)with code 483 (ADVANCED AGILITY package)
Model 207 (except 207.367/388) with code 486 (Sports suspension)
Model 207.367/388 Total front axle toe at vehicle level		 *BE40.20-P-1001-07I
    Model 204.9 with code 460 (Canada version)
Model 204.9 with code 482 (Off-road comfort suspension)
Model 204.9 with code 485 (Comfort suspension)
except code 460 (Canada version)
except code 494 (US version)
except code 830 (China version) as of model refinement
Model 204.9 with code 485 (Comfort suspension)
except code 460 (Canada version)
except code 494 (US version)
except code 830 (China version) up to model refinement		 *BE40.20-P-1001-07ZA
    Model 204.9 with code 486 (Sports suspension)
Model 204.9 with code 494 (US version)
Model 204.9 with code 830 (China version) Total front axle toe at vehicle level
Model 172 Permissible difference in front axle toe between right and left sides of vehicle		 *BE40.20-P-1002-07T
    Model 172 Total front axle toe at vehicle level *BE40.20-P-1001-07T
    Model 204.0 (except 204.077), 204.2 (except 204.277) with code 482 (Off-road comfort suspension) as of model refinement
Model 204.0 (except 204.077), 204.2 (except 204.277) with code 482 (Off-road comfort suspension) up to model refinement, with cross strut old version
Model 204.0 (except 204.077), 204.2 (except 204.277) with code 482 (Off-road comfort suspension) up to model refinement, with cross strut new version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 483 (ADVANCED AGILITY package) as of model refinement
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 483 (ADVANCED AGILITY package) up to model refinement, with cross strut old version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 483 (ADVANCED AGILITY package) up to model refinement, with cross strut new version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 485 (Comfort suspension) as of model refinement
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 485 (Comfort suspension) up to model refinement, with cross strut old version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 485 (Comfort suspension) up to model refinement, with cross strut new version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 486 (Sports suspension) as of model refinement
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 486 (Sports suspension) up to model refinement, with cross strut old version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 486 (Sports suspension) up to model refinement, with cross strut new version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 677 (AGILITY CONTROL suspension) as of model refinement
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29) with code 677 (AGILITY CONTROL suspension) up to model refinement, with cross strut old version
Model 204.0 (except 204.077/08/09), 204.2 (except 204.277/28/29)with code 677 (AGILITY CONTROL suspension) up to model refinement, with cross strut new version
Model 204.077/277 as of model refinement
Model 204.077/277 up to model refinement
Model 204.08/09/28/29/38 with code 486 (Sports suspension)
Model 204.08/09/28/29/38 with code 677 (AGILITY CONTROL suspension)
Model 204.3 (except 204.377/38)		 *BE40.20-P-1001-07Y
    Model 166.0
except code 489 (AIRMATIC)
except code 491 (US version)
except code Z04 (Light armoring)
except code Z05 (B5 armoring on special protection version)
Model 166.0 (except 166.074) with code 489 (AIRMATIC)
Model 166.003/004 with code 491 (US version)
Model 166.023/024/073 with code Z04 (Light armoring)
Model 166.023/024/073 with code Z05 (B5 armoring on special protection version)
Model 166.074/874
Model 166.8 (except 166.874)
Model 292 except code 489 (AIRMATIC)
Model 292 with code 489 (AIRMATIC) Total front axle toe at vehicle level		 *BE40.20-P-1001-07M
9 Tighten counternut (10f). TORQUE SPECIFICATION Model 172 Lock nut, tie rod to inner tie rod *BA46.40-P-1002-01E
    TORQUE SPECIFICATION
Model 204
Model 207
Model 212
Model 218 Jam nut, tie rod to inner tie rod		 *BA46.40-P-1002-01N
    TORQUE SPECIFICATION Model 166
Model 292 Self-locking nut, tie rod to inner tie rod		 *BA46.40-P-1001-01K
10 Remove holding device (055). SPECIAL TOOL Retainer device Fig 2
11 Remove wheel spreader (030).
12 Check boots for twisting. If a boot is twisted, straighten boot.
13 Activate easy entry and exit feature for steering wheel. Model 166, 172, 204, 207, 212, 218, 292 with code 275 (Memory Package (driver's seat, steering column and mirror))
Model 172 with code 275 (Memory Package (driver's seat, steering column and mirror))		 AR54.30-P-1000-02W
INSPECT Check
14 Perform final measurement. Model 166, 292 AR40.20-P-0200GQ
    Model 204 AR40.20-P-0200CW
    Model 172, 207, 212, 218 AR40.20-P-0200EW
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.0 with code 485, except 4MATIC Model 212.0 with code 485, with 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠° - -
+4.08° ∠° - -
+2.67° ∠° - -
+2.66° ∠°  - 0° 9' (±10')
+2.60° ∠°  - -
+2.56° ∠° 0° 9' (±10') -
+1.49° ∠° - -
+1.18° ∠°  - -
+0.27° ∠° - -
+0.25° ∠° - -
+0.12° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.0 with code 486/677, except 4MATIC Model 212.0 with code 486/677, with 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠° - -
+4.08° ∠° - -
+2.67° ∠° - -
+2.66° ∠° - -
+2.60° ∠° - -
+2.56° ∠°  - -
+1.49° ∠°  - -
+1.18° ∠°  - -
+0.27° ∠° - -
+0.25° ∠° - 0° 9' (±10')
+0.12° ∠° 0° 9' (±10') -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.002 with code P25 Model 212.0/2 with code 482
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠°  - -
+4.85° ∠° - 0° 9' (±10')
+4.20° ∠° - -
+4.16° ∠°  - -
+4.08° ∠° - -
+2.67° ∠° - -
+2.66° ∠° - -
+2.60° ∠° - -
+2.56° ∠° - -
+1.49° ∠° 0° 10' (±10') -
+1.18° ∠° - -
+0.27° ∠° - -
+0.25° ∠° - -
+0.12° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.0/2 with code 489, except 4MATIC Model 212.0/2 with code 489, with 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠° - -
+4.08° ∠° - -
+2.67° ∠° - -
+2.66° ∠° - -
+2.60° ∠° - -
+2.56° ∠° - -
+1.49° ∠°  - -
+1.18° ∠°  - -
+0.27° ∠° 0° 9' (±10') -
+0.25° ∠° - 0° 9' (±10')
+0.12° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.1 with code 482 Model 212.1 with code 485
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠°  - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠°  - -
+4.08° ∠° 0° 9' (±10') -
+2.67° ∠° - -
+2.66° ∠° - -
+2.60° ∠° - -
+2.56° ∠° - 0° 9' (±10')
+1.49° ∠° - -
+1.18° ∠° - -
+0.27° ∠° - -
+0.25° ∠° - -
+0.12° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.2 with code 485, except 4MATIC Model 212.2 with code 485, with 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠° - -
+4.08° ∠° - -
+2.67° ∠° - -
+2.66° ∠° - 0° 9' (±10')
+2.60° ∠° - -
+2.56° ∠° 0° 9' (±10') -
+1.49° ∠° - -
+1.18° ∠° - -
+0.27° ∠° - -
+0.25° ∠° - -
+0.12° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212.2 with code 486/677, except 4MATIC Model 212.2 with code 486/677, with 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠° - -
+4.08° ∠° - -
+2.67° ∠° - -
+2.66° ∠° - -
+2.60° ∠° - -
+2.56° ∠° - -
+1.49° ∠° - -
+1.18° ∠° - -
+0.27° ∠° - -
+0.25° ∠° - 0° 9' (±10')
+0.12° ∠° 0° 9' (±10') -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 212.025/056/072 with CODEZ04 Model 212 AMG up to 11.2011, except 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - -
+4.85° ∠° - -
+4.20° ∠° - -
+4.16° ∠° - 0° 30' (±7')
+4.08° ∠° - -
+2.67° ∠° - 0° 20' (±7')
+2.66° ∠° - -
+2.60° ∠° - -
+2.56° ∠° - -
+1.49° ∠° - -
+1.18° ∠°  - 0° 10' (±7')
+0.27° ∠°  - -
+0.25° ∠°  0° 9' (±10') -
+0.12° ∠°  - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 212 AMG as of 12.2011, except 4MATIC Model 212 AMG with 4MATIC
BE40.20-P-1001-07BA Total front axle toe at vehicle level +5.80° ∠° - 0° 30' (±7')
+4.85° ∠° - -
+4.20° ∠° - 0° 18' (±7')
+4.16° ∠° 0° 30' (±7') -
+4.08° ∠° - -
+2.67° ∠° 0° 20' (+7') -
+2.66° ∠° - -
+2.60° ∠° - 0° 7' (±7')
+2.56° ∠° - -
+1.49° ∠° - -
+1.18° ∠° 0° 10' (+7') -
+0.27° ∠° - -
+0.25° ∠° - -
+0.12° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 207 with code 483/485/486 except 4Matic Model 207 with 4Matic
BE40.20-P-1001-07I Total front axle toe at vehicle level -2.06° ∠° - 0° 10' (±10')
-0.34° ∠° - 0° 10' (±10')
+1.38° ∠° - 0° 10' (±10')
+4.13° ∠° 0° 10' (±10') -
+5.72°   0° 10' (±10') -
+7.31°   0° 10' (±10') -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 166.0 except code 489/491/Z04/Z05 Model 166.0 with code 489, model 166.8
BE40.20-P-1001-07M Total front axle toe at vehicle level 5.26° ∠° - 0° 14' (±7')
6.49° ∠° - -
7.97° ∠° - -
9.07° ∠° 0° 25' (±7') -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 166.0 with code 491 Model 166.0 with code Z04/Z05
BE40.20-P-1001-07M Total front axle toe at vehicle level 5.26° ∠°  - 0° 14' (±7')
6.49° ∠°  - -
7.97° ∠° 0° 25' (±7') -
9.07° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 166 AMG Model 292 except code 489
BE40.20-P-1001-07M Total front axle toe at vehicle level 5.26° ∠° 0° 14' (±7') -
6.49° ∠° - 0° 23' (±7')
7.97° ∠° - -
9.07° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 292 with code 489 Model 292 AMG
BE40.20-P-1001-07M Total front axle toe at vehicle level 5.26° ∠° 0° 14' (±7') 0° 14' (±7')
6.49° ∠° - -
7.97° ∠° - -
9.07° ∠° - -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 172.403/447/448/457 up to model year 2015 except code 483/486 Model 172.403/447/448/45 7 up to model year 2015 with code 483/486
BE40.20-P-1001-07T Total front axle toe at vehicle level 1.65° ∠° - 0° 10' (±10')
2.46° ∠° - -
3.26° ∠° 0° 10' (±10') -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 172.403/447/448/457 as of model year 2016 except code 483/48
Model 172.404/431/434/438 except code 483/486		 Model 172.403/447/448/45 as of model year 2016 with code 483/486
Model 172.404/431/434/43 with code 483/486
BE40.20-P-1001-07T Total front axle toe at vehicle level 1.65° ∠° - 0° 9' (±10')
2.46° ∠° - -
3.26° ∠° 0° 9' (±10') -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 172.466 AMG Model 172.475 AMG
BE40.20-P-1001-07T Total front axle toe at vehicle level 1.65° ∠° - -
2.46° ∠°  0° 17' (±10') 0° 13' (±10')
3.26° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2 up to model refinement package, with cross strut (old version), with code 482 Model 204.0/2 up to model refinement package, with cross strut (new version), with code 482
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.6∠° ∠° - +0°10' (±10')
+10.06° ∠° - -
+9.06° ∠° +0°10' (±10') -
+8.47° ∠° - -
+8.26° ∠° - -
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠°  - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠°  - -
+4.30° ∠°  - -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2 up to model refinement package, with cross strut (old version), with code 483/486, except 4Matic Model 204.0/2 up to model refinement package, with cross strut (new version), with code 483/486, except 4Matic
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° - +0°10' (±10')
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° +0°10' (±10') -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2 up to model refinement package, with cross strut (old version), with code 485/677, except 4Matic Model 204.0/2 up to model refinement package, with cross strut (new version), with code 485/677, except 4Matic
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° - +0°10' (±10')
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° +0°10' (±10') -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° - -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2 as of model refinement package, with code 482 Model 204.0/2 as of model refinement package, with code 483/486, except 4Matic
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° +0°10' (±10') -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° - +0°10' (±10')
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° - -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2 as of model refinement package, with code 485, except 4Matic Model 204.0/2 as of model refinement package, with code 677, except 4Matic
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° +0°10' (±10') +0°10' (±10')
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° - -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.3 with code 483/486, except code P84, except 4Matic Model 204.3 with code 677, except 4Matic
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° +0°10' (±10') +0°10' (±10')
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° - -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.3 with code P84 Model 204.0/2/3 with 4Matic, with code 486
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° - -
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° +0°10' (±10') -
+4.30° ∠° - -
+2.24° ∠° - -
-0.34° ∠° - +0°10' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2/3 with 4Matic, with code 677 Model 204.0/2 AMG, up to model refinement package
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° - -
+8.16° ∠° - -
+6.76° ∠° - -
+6.68° ∠° - -
+6.45° ∠° - +0°20' (±10')
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - -
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° - -
+2.24° ∠° +0°10' (±10') -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.0/2 AMG, as of model refinement package
Model 204.3 AMG, except code P98		 Model 204.3 AMG, with code P98
BE40.20-P-1001-07Y Total front axle toe at vehicle level +10.64° ∠° - -
+10.06° ∠° - -
+9.06° ∠° - -
+8.47° ∠° - -
+8.26° ∠° - -
+8.16° ∠° - -
+6.76° ∠° +0°21' (±10') -
+6.68° ∠° - -
+6.45° ∠° - -
+5.88° ∠° - -
+5.29° ∠° - -
+5.07° ∠° - +0°15' (±10')
+4.98° ∠° - -
+4.92° ∠° - -
+4.30° ∠° - -
+2.24° ∠° - -
-0.34° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.9 with code 485, except code 460/494/830 Model 204.9 as of model refinement package, with code 491, except code 460/494/830
BE40.20-P-1001-07ZA Total front axle toe at vehicle level +10.06° ∠° - -
+8.47° ∠° - -
+8.16° ∠° +0° 10' (±10') -
+5.29° ∠° - +0° 10' (±10')
+4.98° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.9 with code 482 Model 204.9 with code 486
BE40.20-P-1001-07ZA Total front axle toe at vehicle level +10.06° ∠° +0° 10' (±10') -
+8.47° ∠° - -
+8.16° ∠° - -
+5.29° ∠° - -
+4.98° ∠° - +0° 10' (±10')
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 204.9 with code 460/494/830
BE40.20-P-1001-07ZA Total front axle toe at vehicle level +10.06° ∠° -
+8.47° ∠° +0° 10' (±10')
+8.16° ∠° -
+5.29° ∠° -
+4.98° ∠° -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 218.3 except 4MATIC, except code 489 Model 218.9 except 4MATIC, except code 489
BE40.20-P-1002-07R Total front axle toe at vehicle level -1.16° ∠° - -
-0.49° ∠° - -
+0.18° ∠° - -
+0, 85 ∠° - -
+1.08° ∠° 0° 10' (±10') 0° 10' (±10')
+1.18° ∠° - -
+1.52° ∠° - -
+2.19° ∠° - -
+2.59° ∠° 0° 10' (±10') 0° 10' (±10')
+2.60° ∠° - -
+2.67° ∠° - -
+4.09° ∠° 0° 10' (±10') 0° 10' (±10')
+4.16° ∠° - -
+4.20° ∠° - -
+5.80° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 218 except 4MATIC, with CODE 489 Model 218.3 with 4MATIC, except CODE 489
BE40.20-P-1002-07R Total front axle toe at vehicle level -1.16° ∠° - 0° 10' (±10')
-0.49° ∠° - -
+0.18° ∠° - 0° 10' (±10')
+0, 85 ∠° - -
+1.08° ∠° 0° 10' (±10') -
+1.18° ∠° - -
+1.52° ∠° - 0° 10' (±10')
+2.19° ∠° - -
+2.59° ∠° 0° 10' (±10') -
+2.60° ∠° - -
+2.67° ∠° - -
+4.09° ∠° 0° 10' (±10') -
+4.16° ∠° - -
+4.20° ∠° - -
+5.80° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation MODEL 218.9 with 4MATIC, except code 489 MODEL 218 with 4MATIC, with code code 489
BE40.20-P-1002-07R Total front axle toe at vehicle level -1.16° ∠° - -
-0.49° ∠° 0° 10' (±10') 0° 10' (±10')
+0.18° ∠° - -
+0, 85 ∠° 0° 10' (±10') 0° 10' (±10')
+1.08° ∠° - -
+1.18° ∠° - -
+1.52° ∠° - -
+2.19° ∠° 0° 10' (±10') 0° 10' (±10')
+2.59° ∠° - -
+2.60° ∠° - -
+2.67° ∠° - -
+4.09° ∠° - -
+4.16° ∠° - -
+4.20° ∠° - -
+5.80° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 218.3 AMG up to 11.2011 Model 218.3 AMG as of 12.2011 except 4MATIC
BE40.20-P-1002-07R Total front axle toe at vehicle level -1.16° ∠° - -
-0.49° ∠° - -
+0.18° ∠° - -
+0, 85 ∠° - -
+1.08° ∠° - -
+1.18° ∠° 0° 10' (±7') 0° 10' (±7')
+1.52° ∠° - -
+2.19° ∠° - -
+2.59° ∠° - -
+2.60° ∠° - -
+2.67° ∠° 0° 20' (±7') 0° 20' (±7')
+4.09° ∠° - -
+4.16° ∠° 0° 30' (±7) 0° 30' (±7)
+4.20° ∠° - -
+5.80° ∠° - -
CHECK VALUES FOR FRONT AXLE TOE

Number Designation Model 218.9 AMG except 4MATIC Model 218.3/9 AMG with 4MATIC
BE40.20-P-1002-07R Total front axle toe at vehicle level -1.16° ∠° - -
-0.49° ∠° - -
+0.18° ∠° - -
+0, 85 ∠° - -
+1.08° ∠° - -
+1.18° ∠° 0° 10' (±7') -
+1.52° ∠° - -
+2.19° ∠° - -
+2.59° ∠° - -
+2.60° ∠° - 0° 7' (±7)
+2.67° ∠° 0° 20' (±7')
+4.09° ∠° - -
+4.16° ∠° 0° 30' (±7) -
+4.20° ∠° - 0° 18' (±7)
+5.80° ∠° - 0° 30' (±7)
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 172.403/447/448/457 up to model year 2015 except code 483/486 Model 172.403/447/448/45 7 up to model year 2015 with code 483/486
BE40.20-P-1002-07T Permissible difference in front axle toe between right and left sides of vehicle ∠° ±10' ±10'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 172.403/447/448/457 as of model year 2016 except code 483/486
Model 172.404/431/434/438 except code 483/486		 Model 172.403/447/448/45 7 as of model year 2016 with code 483/486
Model 172.404/431/434/43 8 with code 483/486
BE40.20-P-1002-07T Permissible difference in front axle toe between right and left sides of vehicle ∠° ±10' ±10'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE TOE

Number Designation Model 172.466 AMG Model 172.475 AMG
BE40.20-P-1002-07T Permissible difference in front axle toe between right and left sides of vehicle ∠° ±10' ±10'
TIE ROD

Number Designation Model 166 Model 292
BA46.40-P-1001-01K Self-locking nut, tie rod to inner tie rod Nm 77 77
TIE ROD

Number Designation Model 172
BA46.40-P-1002-01E Lock nut, tie rod to inner tie rod Nm 65
TIE ROD

Number Designation Model 204 Model 207
BA46.40-P-1002-01N Jam nut, tie rod to inner tie rod Nm 65 65
TIE ROD

Number Designation Model 212 Model 218
BA46.40-P-1002-01N Jam nut, tie rod to inner tie rod Nm 65 65
Fig 2: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
scientia non olet · About LEMON Manuals
