Remove/Install Suspension Strut - AR32.25-P-1017CW

MODEL 172, 204, 207

Shown on model 204.0/2 without 4MATIC

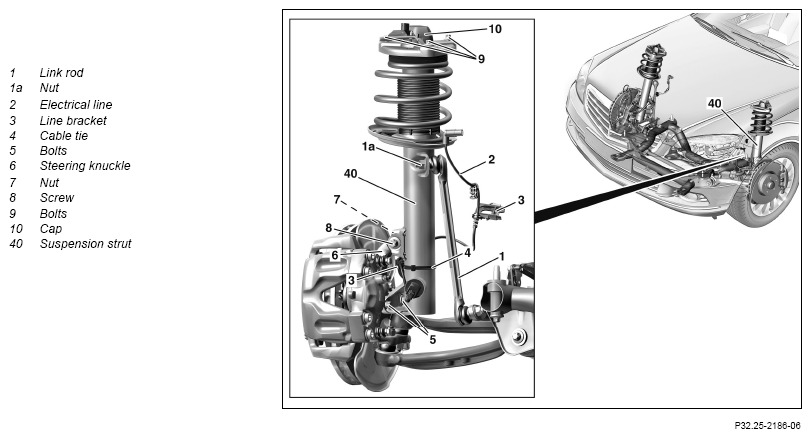

Fig 1: Suspension Strut Components Location - Model 172 (Shown On Model 204.98)
G13845727Courtesy of MERCEDES-BENZ USA

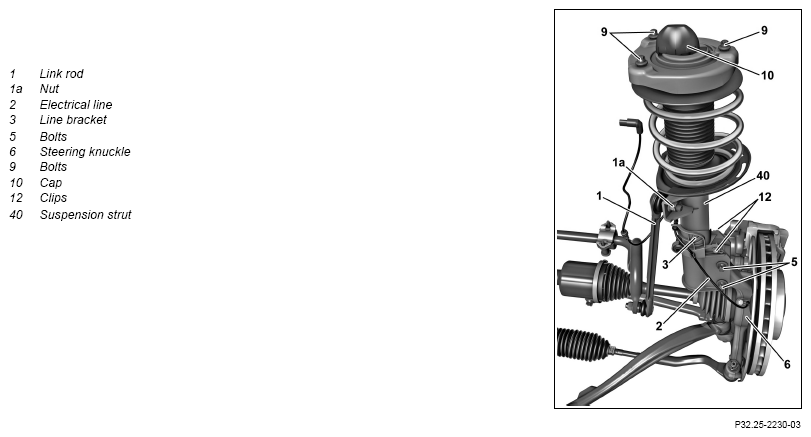

Shown on model 204.98

G13845728Courtesy of MERCEDES-BENZ USA
G13845729Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. AS00.00-Z-0009-01A
Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Open engine hood and move to vertical position MODEL 204 (except 204.3)
MODEL 172		 AR88.40-P-1000V
MODEL 204.3, 207 AR88.40-P-1000EW
2 Remove left or right front wheel MODEL 204 207
REFER TO MAINTENANCE     AP40.10-P-4050CW
REFER TO MAINTENANCE   MODEL 172 AP40.10-P-4050V
3 Unscrew nut (1a) and press link rod (1) out o suspension strut (40) TORQUE SPECIFICATION
MODEL 204
MODEL 207		 *BA32.20-P-1002-02P
TORQUE SPECIFICATION
MODEL 172		 *BA32.20-P-1004-02B
4 Unclip electrical line (2) from line bracket (3)
5 Remove cable tie (4) on suspension strut (40) INSTALLATION IMPORTANT : Observe installation position and replace cable tie (4).
SPECIAL TOOL Pliers		 Fig 2
6.1 Unclip line holder (3) from suspension strut (40) and place to one side MODEL 207 except 4MATIC MODEL 172, 204.0/2/3
6.2 Open clip (12) and remove line bracket (3) from suspension strut (40) MODEL 204.9 MODEL 207 with 4MATIC
7 Detach electrical connection from suspension strut (40) MODEL 172, 204, 207 with CODE 483 (ADVANCED AGILITY package)
8 Remove bolts (5) from steering knuckle (6) TORQUE SPECIFICATION
MODEL 172		 *BA32.25-P-1002-01N
TORQUE SPECIFICATION MODEL 204.0/2/3, 207 except 4MATIC *BA32.25-P-1002-04M
TORQUE SPECIFICATION Model 204, 207 with 4MATIC *BA32.25-P-1005-04M
9 Unscrew nut (7) and pull out bolt (8) Model 172, 204, 207 except 4MATIC
TORQUE SPECIFICATION		 *BA32.25-P-1002-01N
Model 172
TORQUE SPECIFICATION MODEL 204, 207 except 4MATIC		 *BA32.25-P-1001-04M
10 Press suspension strut (40) out of steering knuckle (6)
11
REFER TO COMPONENT MODIFICATIONS		 Remove bolts (9) from suspension strut tower
Bolt, suspension strut to suspension strut tower modified		   BT32.25-P-0002-01CW
TORQUE SPECIFICATION Model 204, 207 *BA32.25-P-1003-04M
TORQUE SPECIFICATION
MODEL 172		 *BA32.25-P-1003-01N
12
REFER TO COMPONENT MODIFICATIONS		 Press retaining clamps (11) of cap (10) together and remove suspension strut (40) Cap for front suspension strut modified MODEL 204 without CODE P98 (Black Series)

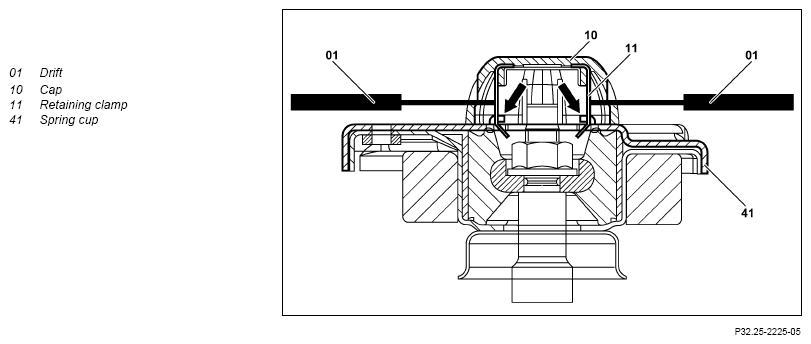

IMPORTANT Insert two punches (01) through the bores in cap (10) and compress the retaining clamp (11) until the catch hooks (arrows) on the spring cup (41) are unlocked.		 BT32.25-P-0001-01CW
INSPECT Check
13 Check suspension strut (40) IMPORTANT The suspension strut (40) should be replaced in the event of damage.
14 Install in the reverse order
15 Perform wheel alignment check MODEL 172, 207 AR40.20-P-0200EW
MODEL 204 AR40.20-P-0200CW
FRONT AXLE TORSION BAR

Number Designation MODEL 204 MODEL 207
BA32.20-P-1002-02P Nut, link rod to suspension strut Nm 98 98
FRONT AXLE TORSION BAR

Number Designation MODEL 172
BA32.20-P-1004-02B Self-locking nut, connecting rod to spring strut M10 Nm -
M10x1.5 Nm -
M12x1.5 Nm 100
M12 Nm -
SUSPENSION STRUTS

Number Designation MODEL 204.00/02/04/05/06/2 0/22/24/25/30/33/34/35 except CODE 483, MODEL 204.077/277, MODEL 204.377 except CODE P98 MODEL 204.00/02/04/05/06/20/22/24/25/30/33/3 4/35 with CODE 483
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14x45 Stage 1 Nm 100 100
Stage 2 ∠ 90 90
SUSPENSION STRUTS

Number Designation MODEL 204.377 with CODE P98 MODEL 207 without CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14x45 Stage 1 Nm 100 100
Stage 2 ∠ 90 90
SUSPENSION STRUTS

Number Designation MODEL 207 with CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1001-04M Bolt, suspension strut to steering knuckle at top M14x45 Stage 1 Nm 100
Stage 2 ∠ 90
SUSPENSION STRUTS

Number Designation MODEL 172
BA32.25-P-1002-01N Suspension strut to lower steering knuckle Nm 110
SUSPENSION STRUTS

Number Designation MODEL 204.00/02/04/05/06/2 0/22/24/25/30/33/34/35 except CODE 483, MODEL 204.077/277, MODEL 204.377 except CODE P98 MODEL 204.00/02/04/05/06/20/22/24/25/30/33/3 4/35 with CODE 483
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12x20 Stage 1 Nm 70 70
Stage 2 loosen loosen
Stage 3 Nm 100 100
SUSPENSION STRUTS

Number Designation MODEL 204.377 with CODE P98 MODEL 207 without CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12X20 Stage 1 Nm 70 70
Stage 2 loosen loosen
Stage 3 Nm 100 100
SUSPENSION STRUTS

Number Designation MODEL 207 with CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1002-04M Bolt, suspension strut to steering knuckle at bottom M12x20 Stage 1 Nm 70
Stage 2 loosen
Stage 3 Nm 100
SUSPENSION STRUTS

Number Designation MODEL 172
BA32.25-P-1003-01N Suspension strut to body Nm 65
SUSPENSION STRUTS

Number Designation MODEL 204.00/02/04/05/06/2 0/22/24/25/30/33/34/35 except CODE 483, MODEL 204.077/277, MODEL 204.377 except CODE P98 MODEL 204.00/02/04/05/06/20/22/24/25/30/33/3 4/35 with CODE 483
BA32.25-P-1003-04M Bolt, suspension strut to body Nm 33 33
SUSPENSION STRUTS

Number Designation MODEL 204.377 with CODE P98 MODEL 204.08/09/28/29/38/9
BA32.25-P-1003-04M Bolt, suspension strut to body Nm 33 33
SUSPENSION STRUTS

Number Designation MODEL 207 without CODE 483 (ADVANCED AGILITY package) MODEL 207 with CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1003-04M Bolt, suspension strut to body Nm 33 33
SUSPENSION STRUTS

Number Designation MODEL 204.08/09/28/29/38/9 MODEL 207 without CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1005-04M Bolt of suspension strut to steering knuckle M14x70 Stage 1 Nm 120 120
Stage 2 ∠ 90 90
SUSPENSION STRUTS

Number Designation MODEL 207 with CODE 483 (ADVANCED AGILITY package)
BA32.25-P-1005-04M Bolt of suspension strut to steering knuckle M14x70 Stage 1 Nm 120
Stage 2 ∠ 90
Fig 2: Identifying Pliers (164 589 01 37 00)
G13845730Courtesy of MERCEDES-BENZ USA
