Remove/Install Stabilizer Bar On Rear Axle - AR32.20-P-0315V
MODEL 171, 172

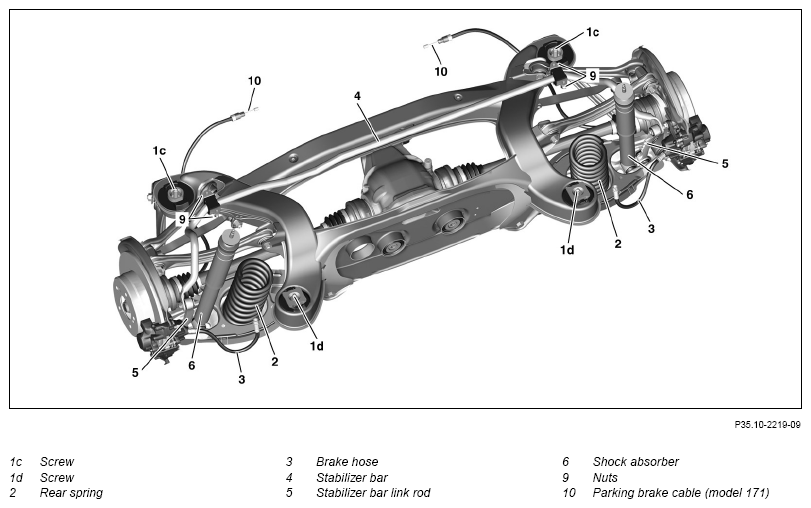

Shown on model 171.442
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Lower rear axle. | AR35.10-P-0015W | |
| 2 | Remove rear springs (2) | AR32.20-P-0230V | |
| 3 | Detach torsion bar link rods (5) from torsion bar (4) | *BA32.20-P-1001-04C | |
| 4 | Unscrew nuts (9) and remove stabilizer bar (4) from frame floor assembly | *BA32.20-P-1007-04C | |
| 5 | Remove torsion bar (4) | ||
| 6 | Install in the reverse order |
REAR AXLE STABILIZER BAR
| Number | Designation | Model 171 | Model 172 | |
|---|---|---|---|---|
| BA32.20-P-1001-04C | Nut, link rod to stabilizer bar | Nm | 30 | 30 |
| BA32.20-P-1007-04C | Self-locking nut, torsion bar rubber mount to frame floor | Nm | 23 | 23 |
