Remove/Install Left Front Or Right Rpm Sensor - AR42.30-P-0712LW

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205

Model 213

Model 253

Model 293

G12939408Courtesy of MERCEDES-BENZ USA

Shown on model 205

Shown on model 213

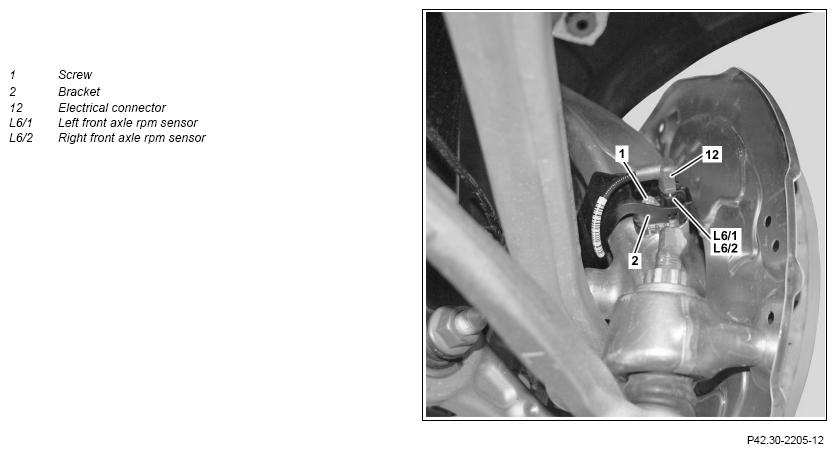

Fig 1: Left Front Or Right Rpm Sensor Components Location - Model 205; Shown on Model 213
G12939409Courtesy of MERCEDES-BENZ USA
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Remove front wheel.   AR40.10-P-1102A
2 Release electrical connector (12) and pull off left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2). Model 213
Model 253.388/389/988/989

3 Unscrew bolt (1).
4 Lift holder (2) over nut (arrow) and detach left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2). Model 205, 253 (except 253.388/389/988/989)
5 Route electric line (3) out of holder (2) and let holder (2) hang down at the side. Model 205, 253 (except 253.388/389/988/989)
6 Disconnect electrical connector (5) from level sensor. Model 205, 253, 293
If installed.

7 Unclip holder (7) on upper transverse control arm (6) and swing connecting linkage (8) upwards with lever (9). Model 205, 253, 293
If installed.

8 Fix holder (7) in place on upper transverse control arm (6) with cable tie. Model 205, 253, 293
If installed.

9 Disconnect electrical connector (10) from front axle right distributor electrical connector (X62/6) or front axle left distributor electrical connector (X62/7). Model 205, 253, 293
10 Unscrew fender interior trim nut (11), open holder (4), remove electric line (3) from holder (4) then expose. Model 205, 253
11 Remove left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2).
12 Install in the reverse order.
13 Read out and erase fault memory using the vehicle diagnosis system.
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 293 AD00.00-P-2000-06FR
REFER TO SELF-DIAGNOSTIC SYSTEMS   Model 205, 213, 253 AD00.00-P-2000-04B
