Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610LWB

Model 205

with code B06 (grey-painted brake callipers)

except code B07 (AMG - ceramic brake system)

except code U70 (red-painted brake callipers)

6-piston fixed-caliper brake

Model 213

with code B06 (grey-painted brake callipers)

except code B07 (AMG - ceramic brake system)

except code U70 (red-painted brake callipers)

6-piston fixed-caliper brake

Model 253

with code B06 (AMG high-performance braking system)

except code B07 (AMG - ceramic brake system)

except code U70 (AMG high-performance composite braking system)

6-piston fixed-caliper brake

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove/install
1	Open service flap above expansion reservoir for brake fluid
2	Clean area around cap on expansion reservoir for brake fluid	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir overflowing when the brake piston is pushed back.
4	Remove front wheels		AR40.10-P-1102A
5	Create access to electrical line of right front brake pad wear sensor and disconnect electrical connector	Pay attention to the routing of the electrical line of the right front brake pad wear sensor.
6	Unscrew bolts (2) Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		: Replace screw/bolts (2).
		Model 205 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake Model 253 with code B06 (AMG high-performance braking system) except code B07 (AMG - ceramic brake system) except code U70 (AMG high-performance composite braking system) 6-piston fixed-caliper brake Bolt, brake caliper/brake caliper support to steering knuckle	*BA42.10-P-1001-10W
		Model 213 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake Bolt, brake caliper/brake caliper support to steering knuckle	BA42.10-P-1001-10X

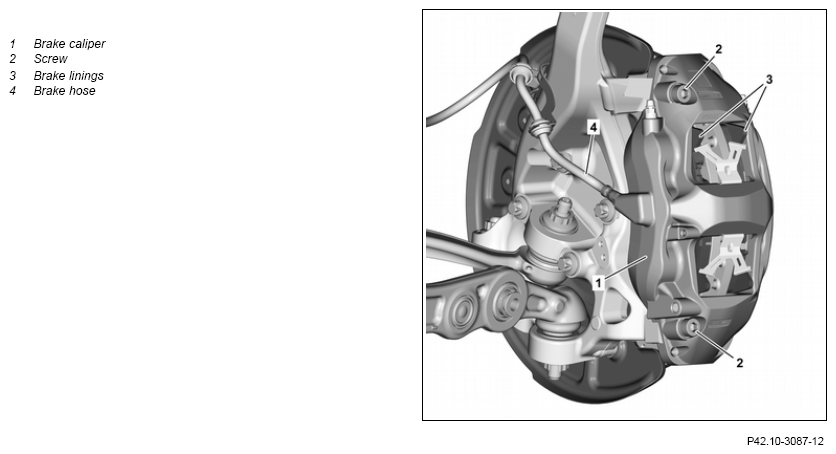

7	Press back brake pistons slightly using pusher tool	Attach pusher tool to the elevations of the brake linings (3). Resetting device	Fig 1
8	Unhook brake hose (4) out of bracket on steering knuckle or suspension strut
9	Remove brake caliper (1) from steering knuckle and secure free of tension to vehicle with lines still connected	Do not stretch or kink the brake hose (4) and electrical line. The brake hose (4) and the electrical line may otherwise be damaged.
10	Remove brake pads (3) from brake caliper (1)	: Only brake pads (3) approved by Mercedes-Benz may be installed, and only as complete sets. Do not apply brake paste or lubricants to the brake linings (3) and brake calipers (1).
11	Remove spring steel sheets from brake caliper (1)	When replacing the brake pads (3).
	Check
12	Check retaining spring for damage and condition	If a problem arises ↓ Replace retaining spring.
13	Check brake linings (3) for wear and condition
		Model 253 with code B06 (AMG high-performance braking system) except code B07 (AMG - ceramic brake system) except code U70 (AMG high-performance composite braking system) 6-piston fixed-caliper brake	AP42.10-P-4252D
		Model 205 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake	AP42.10-P-4252CAA
		Model 213 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake In event of damage or excessive wear ↓ Replace brake pads (3). Replace brake pads (3) as a complete set only.	AP42.10-P-4252E
14	Check brake disk for wear and condition
		Model 205 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake	AP42.10-P-4258EW
		Model 213 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake Model 253 with code B06 (AMG high-performance braking system) except code B07 (AMG - ceramic brake system) except code U70 (AMG high-performance composite braking system) 6-piston fixed-caliper brake In event of damage or excessive wear ↓ Replace brake disks.	AR42.10-P-0120LWG
		Replace brake disks as a complete set only	AR42.10-P-0220EWE
15	Check brake caliper (1) and dust boots of brake piston for leak tightness and damage	If a problem arises ↓ Replace brake caliper (1).	AR42.10-P-0070LWB
16	Press back brake pistons using pusher tool	Secure remaining brake pistons using two wedges against slipping out.
		Resetting device	Fig 1
		Wedge	Fig 2
		With sluggish brake pistons ↓ Replace brake caliper (1).	AR42.10-P-0070LWB
	Clean
17	Clean contact surfaces of brake linings (3) on brake caliper (1) and brake piston	Do not use sharp-edged or pointed objects. The brake caliper (1) or the dust boots of the brake pistons can otherwise be damaged. Assembly cleaner	*BR00.45-Z-1028-04A
18	Pull front right brake pad wear sensor out of backing plate of brake pad (3)	When replacing the brake pads (3) or replacing the right front brake wear sensor Pay attention to the installation location of the right front brake pad wear sensor.
19	Install in the reverse order
20	Operate the brake pedal several times until brake linings (3) contact the brake disks	Firm resistance should be noticeable at the brake pedal.
	Check
21	Check/correct brake fluid level in expansion reservoir
		Model 205 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake	AP42.10-P-4210CAA
		Model 213 with code B06 (grey-painted brake callipers) except code B07 (AMG - ceramic brake system) except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake Model 253 with code B06 (AMG high-performance braking system) except code B07 (AMG - ceramic brake system) except code U70 (AMG high-performance composite braking system) 6-piston fixed-caliper brake	AP42.10-P-4210B
22	Carry out brake test on the test stand
			AP42.00-P-4290BA

Fig 1: Identifying Resetting Device (000 589 52 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Wedge (601 589 07 63 00)

Courtesy of MERCEDES-BENZ USA
