Remove/Check/Install Front Axle Brake Pads - AR42.10-P-1610LW

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 205, 213, 253

1-piston floating caliper brake

MODIFICATION NOTES

20.02.2017

Specification for application of brake paste inserted

Operation step 19

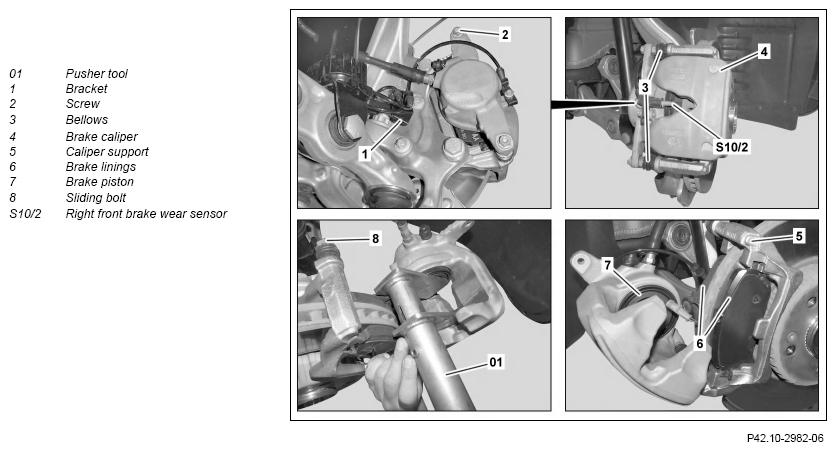

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove
1	Remove cover above brake fluid expansion reservoir
2	Clean area around cap on expansion reservoir for brake fluid	Assembly cleaner	*BR00.45-Z-1028-04A
3	Unscrew the cap on the brake fluid expansion reservoir and suction off some brake fluid	This prevents the expansion reservoir overflowing when the brake piston is pushed back (7).
4	Remove front wheels		AR40.10-P-1102A
5	Detach electrical line of front right brake wear sensor (S10/2) from bracket (1)	Pay attention to the routing of the electrical line of the right front brake pad wear sensor (S10/2).
6	Detach front right brake wear sensor (S10/2) from electrical connection
7	Unscrew bolt (2)
8	Release outer brake lining (6) from brake caliper (4)	The outer brake pad (6) is bonded and if the bonding is detached, the brake pads (6) must be replaced.
9	Fold back brake caliper (4)	Do not subject the brake hose and electrical line to tension and do not kink them. The brake hose and the electrical line can otherwise be damaged.
10	Remove brake pads (6)
11	Remove spring steel sheets from brake caliper support (5)	Model 205, 253
12	Pull right front brake wear sensor (S10/2) from pad backing plate of brake lining (6)	Pay attention to the installation location of the right front brake pad wear sensor (S10/2).
	Check
13	Check brake disk for wear and condition
		Replace brake disks as a complete set only In event of damage or excessive wear ↓ Replace brake disks.	AP42.10-P-4256EW
			AR42.10-P-0220EWE
14	Check brake caliper (4) with detachable parts for damage	If a problem arises ↓ Replace corresponding components.	AR42.10-P-0070LW
15	Check brake caliper support (5) for damage	If a problem arises ↓ Replace brake caliper support (5).	AR42.10-P-0070LW
16	Push back brake piston (7) using pusher tool (01)	Resetting device If the brake piston (7) is sluggish ↓ Replace brake caliper (4).	Fig 1
			AR42.10-P-0070LW
	Clean
17	Clean contact surfaces of brake linings (6) on brake caliper (4) and on brake caliper support (5)	Do not use sharp-edged or pointed objects. Otherwise, the dust boot, brake caliper (4) or the brake caliper support (5) may be damaged. Adhesive residue must be completely removed from the contact surfaces of the brake caliper (4). Assembly cleaner	*BR00.45-Z-1028-04A
	Install
18	Connect right front brake pad wear sensor (S10/2) to backing plate of brake pad (6)
19	Apply brake paste to brake caliper support (5)		AR42.10-P-0163-01LW
		Brake paste, Varybond	*BR00.45-Z-1072-06A
20	Remove protective foils from bonding surfaces of brake pads (6)
21	Insert spring steel sheets at brake caliper support (5)	Model 205, 253
22	Insert brake pads (6)	No brake paste or lubricants must be applied to the brake pads (6). Only sets of brake pads (6) approved by Mercedes-Benz may be installed.
23	Insert brake caliper (4)	No brake paste or lubricants must be applied to the brake calipers (4).
24	Tighten screw (2)	Model 213 Guide pin to brake caliper support or bolt for guide pin to brake caliper	BA42.10-P-1004-10X
		Model 205 (except 205.086/087/286/287/386/387/486/487) Model 253 Guide pin to brake caliper support or bolt for guide pin to brake caliper	*BA42.10-P-1005-10W
25	Connect right front brake pad wear sensor (S10/2) to electrical connector
26	Fasten electrical line of right front brake pad wear sensor (S10/2) on bracket (1)
27	Install front wheels		AR40.10-P-1102A
28	Operate brake pedal several times until brake pads (6) contact brake disks
	Check
29	Check and correct brake fluid level in expansion reservoir
		Model 205	AP42.10-P-4210CAA
		Model 213, 253	AP42.10-P-4210B
30	Carry out brake test on the test stand
			AP42.00-P-4290BA
