Remove/Install Underbody Paneling - AR61.30-P-1001W

MODEL 172.4

Courtesy of MERCEDES-BENZ USA

Picture item, etc.	Work instructions
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Raise vehicle with vehicle lift		AR00.60-P-1000V

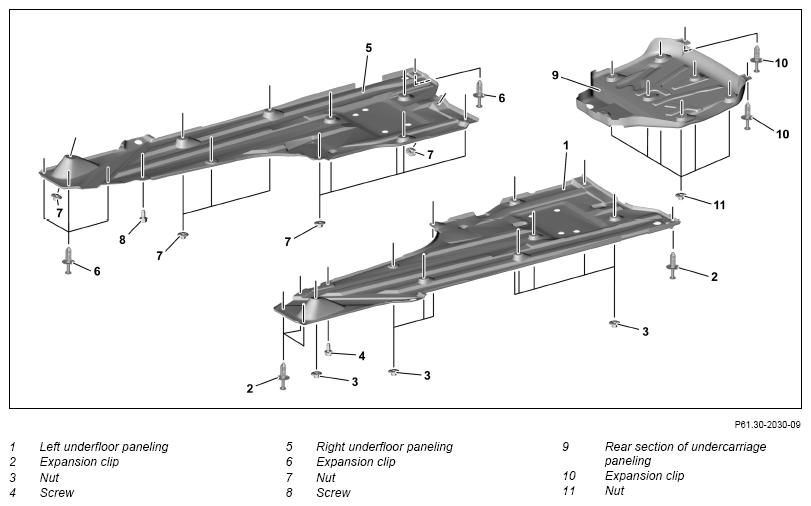

1	Left underfloor paneling	Remove expansion clips (2) Unscrew nuts (3) and bolt (4) and remove left underfloor paneling (1). Rechargeable drill/screwdriver
5	Right underfloor paneling	Remove expansion clips (6) Unscrew nuts (7) and bolt (8) and remove right underfloor paneling (5). Rechargeable drill/screwdriver
9	Rear section of undercarriage paneling	Remove expansion clips (10) Unscrew nuts (11) and remove rear underfloor paneling (9). Rechargeable drill/screwdriver
