Remove/Install Parktronic System (PTS) Sensors In Rear Bumper - AR54.65-P-0002MMI
Model 172.4
with Code (230) Advanced Parking Guidance

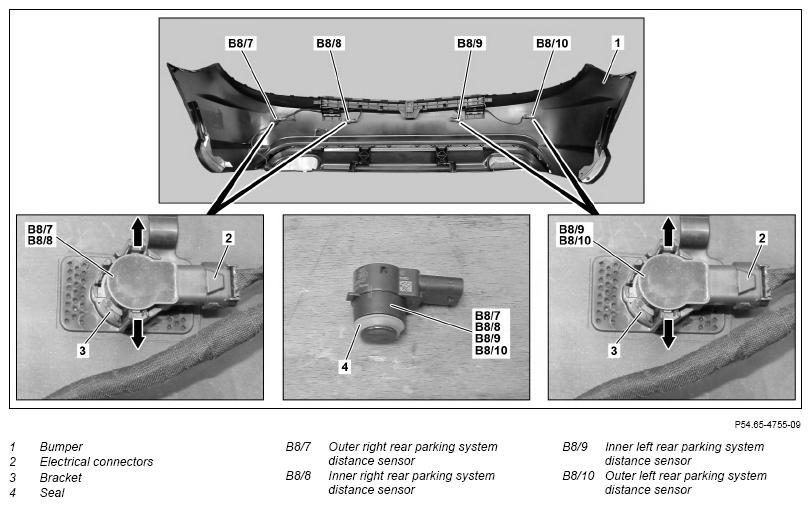

Fig 1: Parktronic System (PTS) Sensors In Rear Bumper Components Location - Model 172.4 With Code 230
| Remove/install | |||
| 1 | Remove rear bumper (1) | AR88.20-P-2200W | |
| 2 | Remove impact absorber | ||
| 3 | Disconnect electrical connectors (2) from rear parking system distance sensors (B8/7, B8/8, B8/9, B8/10) | ||
| 4 | Release brackets (3) at catch hooks (arrows) and remove rear parking system distance sensor (B8/7, B8/8, B8/9, B8/10) from brackets (3) | ||
| 5 | Install in the reverse order |
