Remove/Install Rear Bumper - AR88.20-P-2200W
Model 172.4
Shown on model 172.4 with code (230) Exclusive parking aid
| Remove/install | |||
| 1.1 | Open luggage compartment lid | Model 172.4 except code 230 (Advanced Parking Guidance) except code 237 (Active Blind Spot Assist) |
|
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| 1.2 | Move trunk lid to assembly position | Model 172.4 with code 230 (Advanced Parking Guidance) with code 237 (Active Blind Spot Assist) |
AR88.50-P-5000-01V |
| Fig 5 | |||
| 2 | Switch off ignition | ||

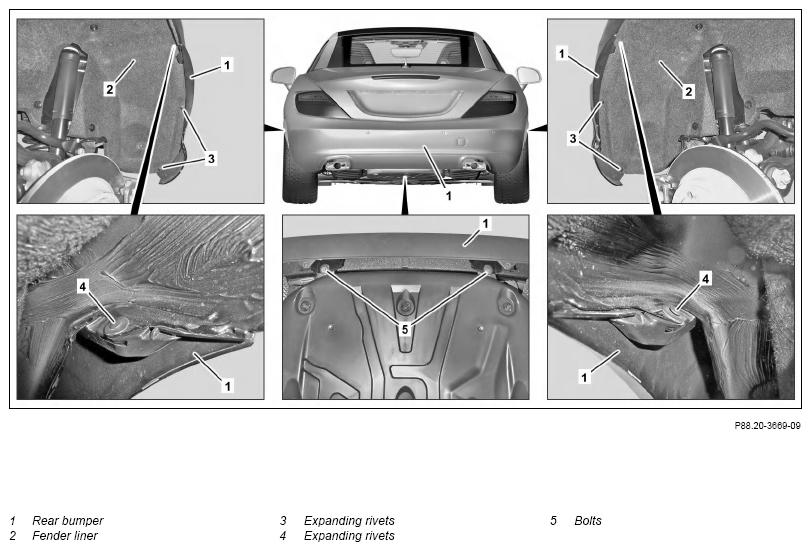

| 3 | Unscrew bolts (5) at bottom of rear bumper | ||
| 4 | Remove expansion rivets (3) on left and right side of vehicle | Fig 3 | |
| 5 | Loosen left and right fender liner (2) in area of rear bumper (1) until expansion rivets (4) are accessible | Fig 3 | |
| Fig 4 | |||
| 6 | Remove expansion rivets (4) on left and right side of vehicle | Fig 3 | |

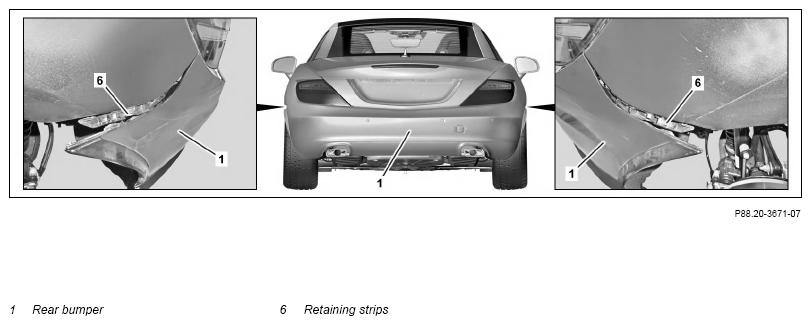

| 7 | Unclip rear bumper (1) on left and right retaining strip (6) | ||

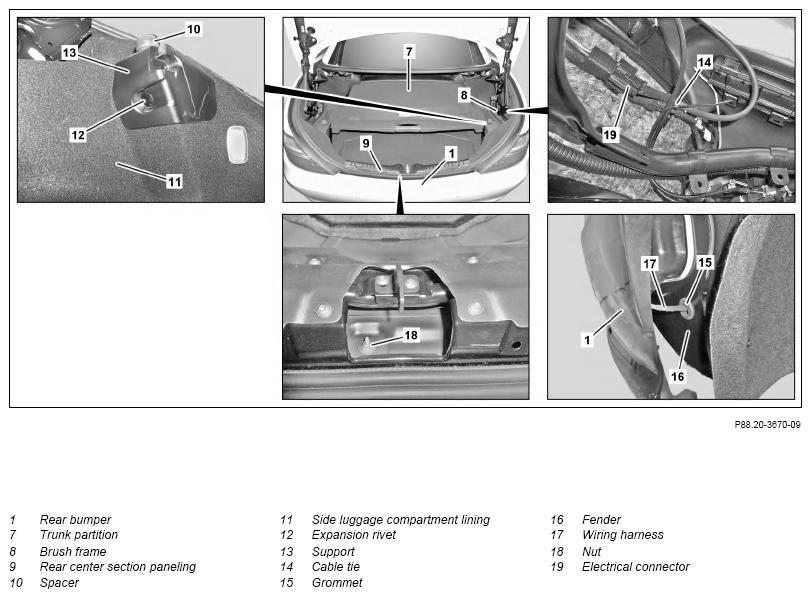

| 8 | Remove rear center section paneling (9) | ||
| 9 | Open trunk partition (7), loosen right side trunk paneling (11) in rear area until electrical connector (19) is accessible | Model 172.4 with code 230 (Advanced Parking Guidance) with code 237 (Active Blind Spot Assist) |
|
| Fig 3 | |||
| 10 | Remove cable tie (14) and expose electrical connector (19) | Model 172.4 with code 230 (Advanced Parking Guidance) with code 237 (Active Blind Spot Assist) |
|
| 11 | Disconnect electrical connection (19) | Model 172.4 with code 230 (Advanced Parking Guidance) with code 237 (Active Blind Spot Assist) |
|
| 12 | Remove grommet (15) and pull wiring harness (17) out of fender (16) | Model 172.4 with code 230 (Advanced Parking Guidance) with code 237 (Active Blind Spot Assist) |
|
| 13 | Unscrew nut (18) from rear bumper (1) | ||
| 14 | Remove rear bumper (1) toward rear with aid of helper | ||
| 15 | Install in the reverse order | ||
| 16 | Adjust rear bumper (1) | AR60.00-P-0700-01V | |
| Gap dimension | *BE60.00-P-1003-01Y | ||
| Fig 2 |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 172 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01Y | Gap dimension | Trunk lid to rear fender | Dimension "F" | mm | 4, 5 (+1) |
| Trunk lid to taillamp | Dimension "M" | mm | 4, 5 (+1, 5/-0, 5) | ||
| Trunk lid to bumper | Dimension "V" | mm | 6, 0 (±1, 5) | ||
| Rear fender to taillamp | Dimension "U" | mm | 1, 5 (±1) | ||
| Trunk lid tip to rear fender | Dimension "E" | mm | 6, 5 (+1/-0, 5) | ||
| Picture | AR60.00-P-0700-01V | ||||
