Remove/Install Hydraulic Unit - AR77.37-P-3500W
MODEL 172.4
Shown with code (288) AIRCAP
| Remove/install | |||
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize hydraulic system completely before starting any work on system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on Vario roof assembly work | AH77.30-P-0002-01R | ||
| 1 | Open Vario roof fully | ||
| 2 | Completely move front seats and backrests toward front | ||
| 3 | Switch off ignition | ||

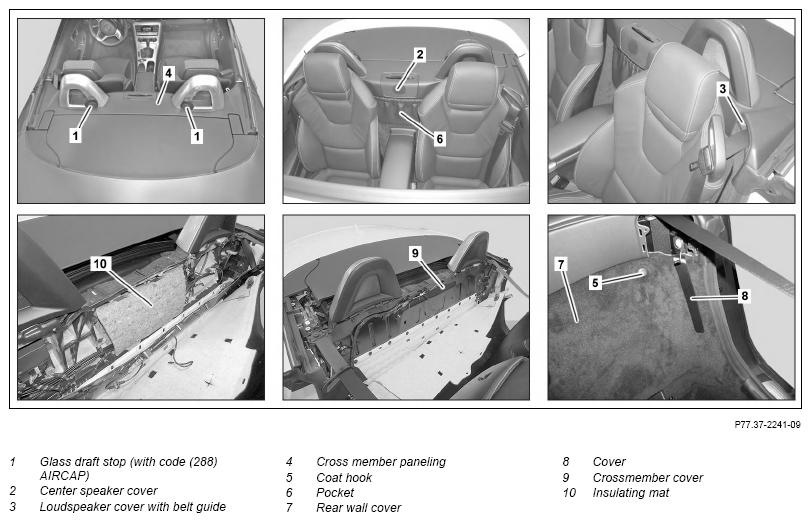

| 4 | Remove draft stop or left right glass draft stop (1) and associated brackets from roll bars | ||
| 5 | Remove center speaker cover (2) | ||
| 6 | Remove left and right speaker cover with belt guide (3) and allow to hang on seat belt. | ||
| 7 | Remove cross member paneling (4) | ||
| 8 | Remove left and right coat hanger hooks (5) | ||
| 9 | Remove pocket (6) from rear wall cover (7) | ||
| 10 | Remove left and right cover (8) from rear wall paneling (7) | ||
| 11 | Fold rear wall paneling (7) toward front until cross member cover (9) can be removed | ||
| 12 | Remove crossmember cover (9) and lay down toward front with electrical lines connected | Rechargeable drill/screwdriver |
*BA77.30-P-1001-01E |
| 13 | Fold up insulating mat (10) and secure against folding down | See: ↓ Check oil level Vario roof actuation hydraulic unit (A7/5), correct if necessary |
AR77.37-P-3501W |

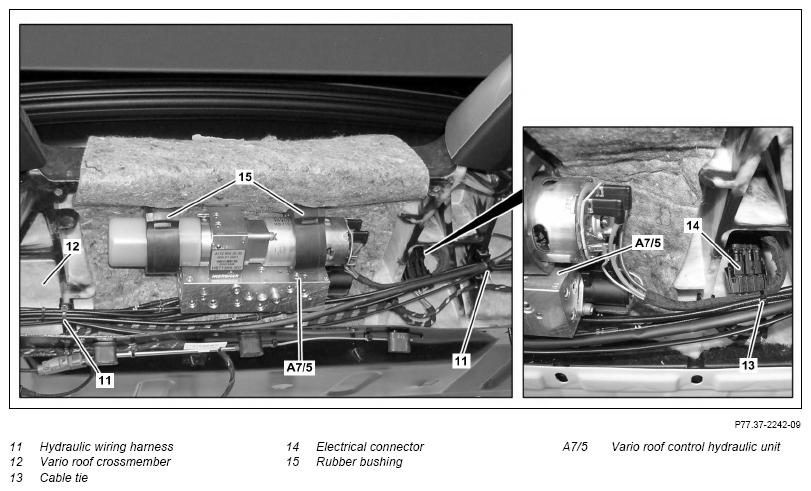

| 14 | Unclip hydraulic wiring harnesses (11) from Vario roof crossmember (12) | ||
| 15 | Open cable ties (13) and disconnect electrical connector (14) | ||
| 16 | Unhook Vario roof actuation hydraulic unit (A7/5) from rubber mounts (15) and turn until the connections on the hydraulic cylinders are accessible | ||
| 17 | Disconnect hydraulic lines from Vario roof actuation hydraulic unit (A7/5) | AR77.37-P-1000-04V | |
| *BA77.37-P-1001-01A | |||
| *BA77.37-P-1002-01A | |||
| Fig 2 | |||
| 18 | Remove Vario roof actuation hydraulic unit (A7/5) from vehicle | ||
| 19 | Install in the reverse order |
SOFT TOP
| Number | Designation | Model 172 | |
|---|---|---|---|
| BA77.30-P-1001-01E | Bolt, cover to Vario roof cross member | Nm | 6 |
SOFT TOP HYDRAULIC COMPONENTS
| Number | Designation | Model 172 | ||
|---|---|---|---|---|
| BA77.37-P-1001-01A | Emergency operation valve at hydraulic unit | Nm | 2.5 | |
| See picture | - | |||
| BA77.37-P-1002-01A | Bolt, connection plate to hydraulic unit | Nm | 4 | |
