Disconnect Hydraulic Lines From Hydraulic Pump And Connect - AR77.37-P-1000-04V
MODEL 171.4, 172.4
SOFT TOP HYDRAULIC COMPONENTS
| Number |
Designation |
Model 171 |
Model 172 |
| BA77.37-P-1001-01A |
Emergency operation valve at hydraulic unit |
|
Nm |
2.5 |
2.5 |
| See picture |
- |
- |
| BA77.37-P-1002-01A |
Bolt, connection plate to hydraulic unit |
Nm |
5 |
4 |
Courtesy of MERCEDES-BENZ USA
Illustrated on model 171.4
- Open emergency opening valve (1) on soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4) two turns and close again.
:
Observe tightening torque.
Open emergency opening valve (1) max. 2 turns, otherwise the soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4) can be damaged.

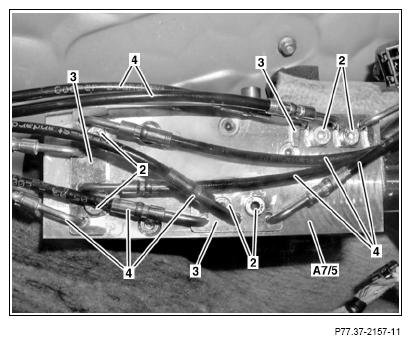

 Courtesy of MERCEDES-BENZ USA
|
- Unscrew bolts (2).
:
Observe tightening torque for bolts (2).
- Remove connection plates (3) from soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4)
- Separate hydraulic lines (4) from soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4).
Lay rag below soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4), plug hydraulic lines (4) and connections on soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4) with
stop plug, otherwise the vehicle interior can be soiled.
 Courtesy of MERCEDES-BENZ USA
|
Observe marking on hydraulic lines (4). The connections on the soft top mechanism hydraulic unit (A7/5) (model 171.4) or Vario roof control hydraulic unit (A7/5) (model 172.4) and hydraulic lines (4) are number-coded.
- Connect hydraulic lines (4) in opposite order.
