Remove/install water collector - AR83.25-P-1402RK

MODEL 231

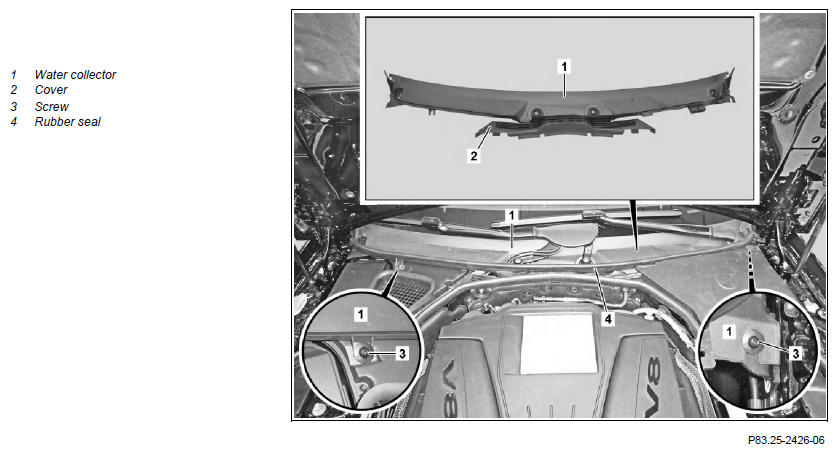

Fig 1: Water Collector Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove both wiper arms		AR82.30-P-6100RK
2	Remove rubber seal (4) from water collector (1)
3	Unhook cover (2) from water collector (1)
4	Remove bolt (3)
5	Remove water collector (1)
6	Install in the reverse order
