Remove/install telescoping nozzle for headlamp cleaning system - AR82.15-P-6100RK

MODEL 231

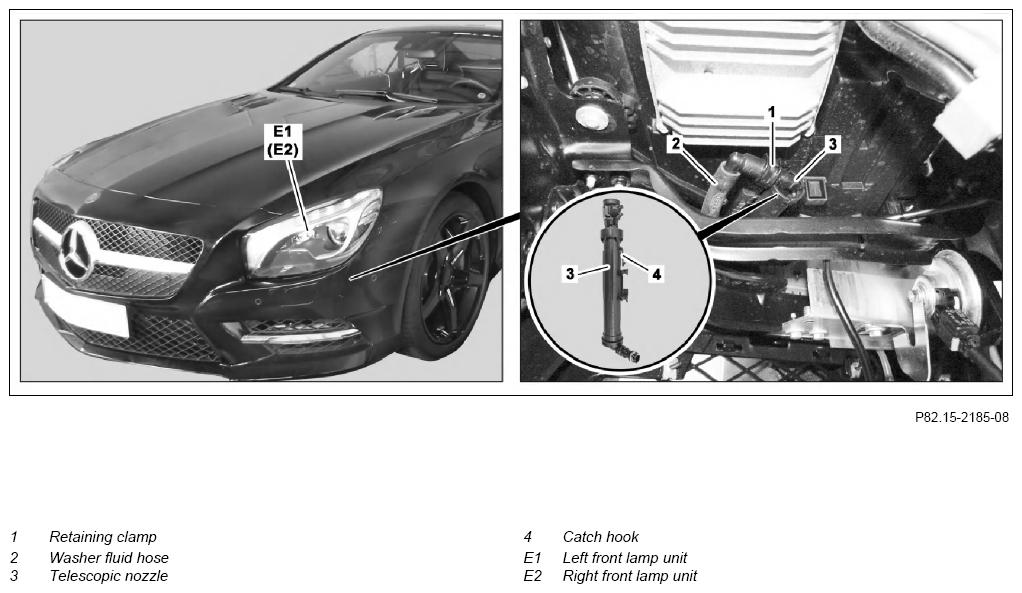

Fig 1: Telescoping Nozzle For Headlamp Cleaning System Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach left or right front fender liner	Only detach left or right front fender liner until left front lamp unit (E1) or right front lamp unit (E2) is accessible.	AR88.10-P-1300RK
2	Detach retaining clamp (1) and remove washer fluid hose (2) from telescopic nozzle (3)	Collect washer fluid which flows out.
3	Release catch hook (4) and remove telescopic nozzle (3) from left front lamp unit (E1) or right front lamp unit (E2)
4	Install in the reverse order
5	Perform function test of headlamp cleaning system		AP82.30-P-8252RK
