Remove/install fender liner in front fender - AR88.10-P-1300RK
MODEL 231
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | AR00.60-P-1000TX | |

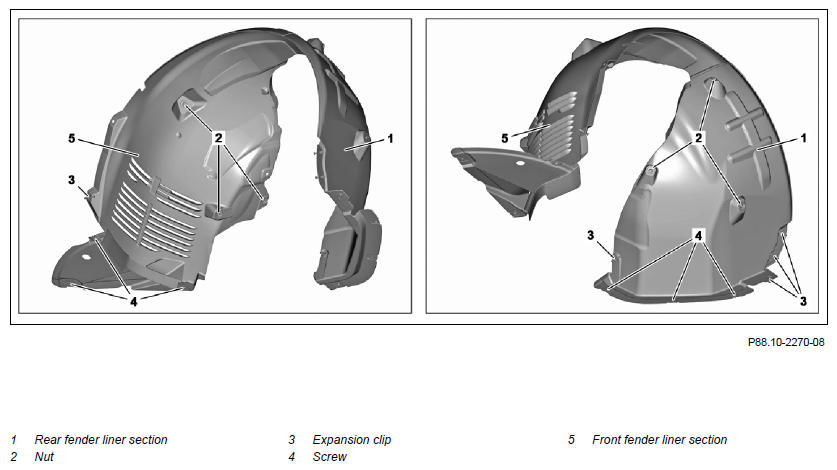

| 2 | Remove expansion clips (3) | ||
| 3 | Remove bolts (4) | ||
| 4 | Unscrew nuts (2) from rear fender liner section (1) | ||
| 5 | Remove rear fender liner section (1) | ||
| 6 | Unscrew nuts (2) from front fender liner section (5) | ||
| 7 | Remove front fender liner section (5) | ||
| 8 | Install in the reverse order |
