Remove/install signaling lights actuation module - AR82.10-P-4655RK

MODEL 231

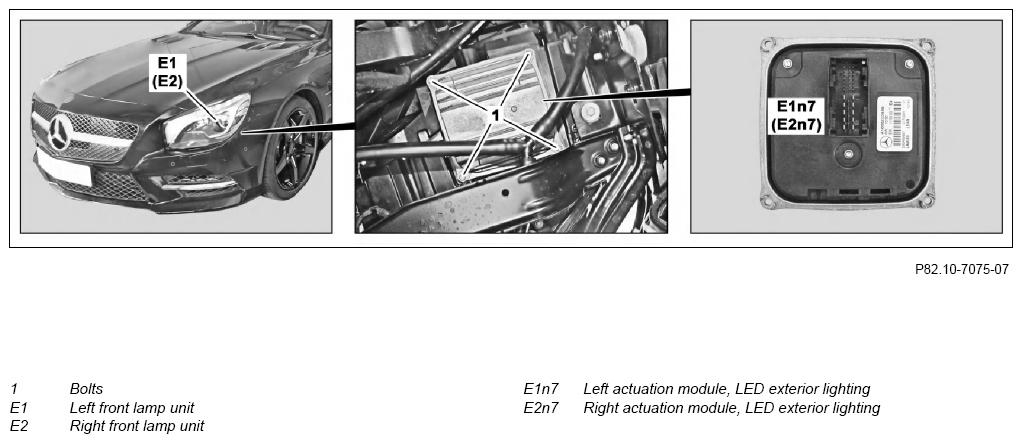

Fig 1: Signaling Lights Actuation Module Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Carry out initial startup of left actuation module, LED exterior lighting (E1n7) or right actuation module, LED exterior lighting (E2n7) Connect STAR DIAGNOSIS and read out fault memory	When replacing left actuation module, LED exterior lighting (E1n7) or right actuation module, LED exterior lighting (E2n7). Note string for LAM number on the left front lamp unit (E1) or right front lamp unit (E2).	AD00.00-P-2000-04A
2	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit
3	Detach right or left front fender liner in front fender until left front lamp unit (E1) or right front lamp unit (E2) is accessible		AR88.10-P-1300RK
4	Remove bolt (1)
5	Remove left actuation module, LED exterior lighting (E1n7) or right actuation module, LED exterior lighting (E2n7) from left front lamp unit (E1) or right front lamp unit (E2) and disconnect electrical connector	Ensure gasket is correctly installed.
6	Install in the reverse order
