Remove/install stowage compartment in rear center console - AR68.20-P-2460RK

MODEL 231

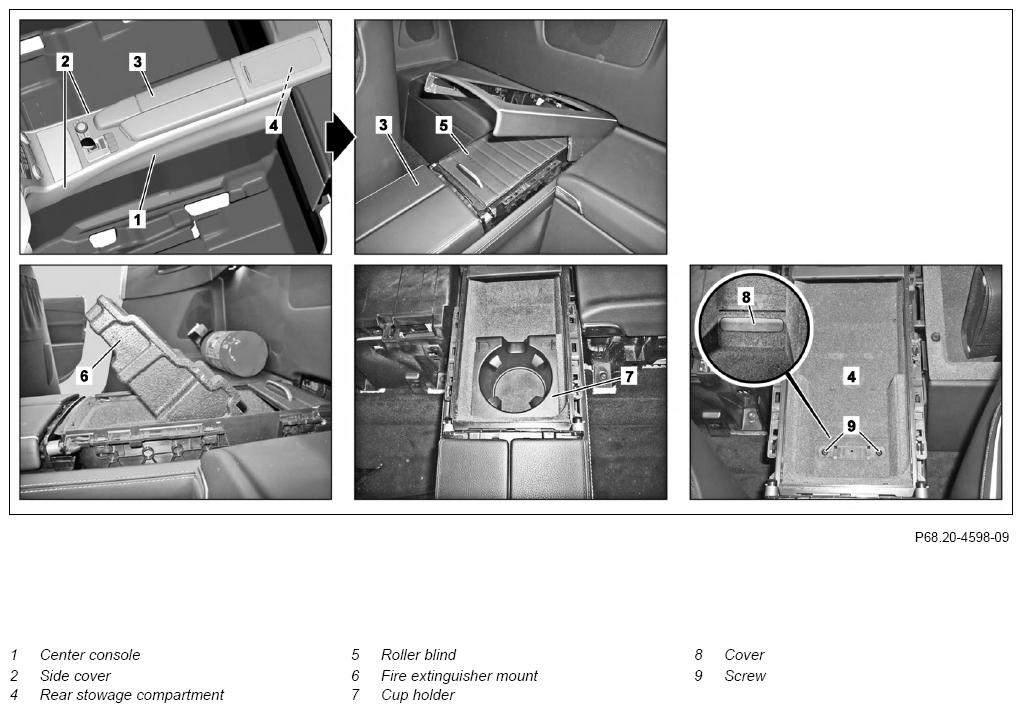

Fig 1: Stowage Compartment In Rear Center Console Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach left and right side cover (2) in area of center console (1)	Perform only operation steps required for detaching side covers (2) in rear area of center console (1).	AR68.20-P-2355RK
2	Open roller blind (5) on rear stowage compartment (4)
3.1	Remove fire extinguisher and fire extinguisher mount (6)	With CODE 682 (fire extinguisher)
3.2	Unlock cupholder (7) and remove	With CODE 309 (cup holder)
4	Remove cover (8)	Mounting wedge	Figure
5	Remove rear stowage compartment (4)	To do this, remove bolts (9).
6	Install in the reverse order
