Removing and installing headlamp for daytime running light - AR82.10-P-2300RK

MODEL 231

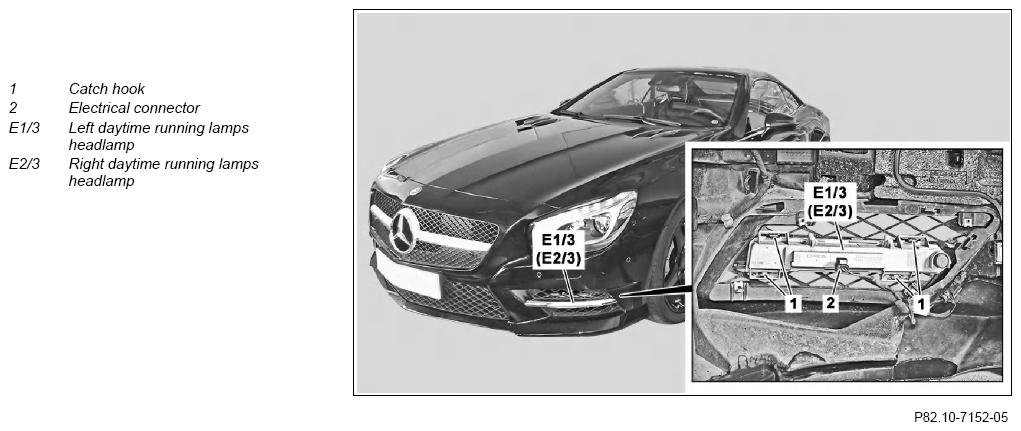

Fig 1: Headlamp For Daytime Running Light Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Lift vehicle on vehicle lift		AR00.60-P-1000TX
2	Turn the respective front wheel inwards
3	Remove the respective fender liner in the area of bumper	Remove fender liner until left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) is accessible.	AR88.10-P-1300RK
4	Disconnect electrical connector (2)
5	Unclip and remove left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3) at catch hooks (1)	Ensure that catch hooks (1) are correctly engaged. Check catch hooks (1), if necessary replace left daytime running lights headlamp (E1/3) or right daytime running lights headlamp (E2/3).
6	Install in the reverse order
7	Carry out function check
