Remove/install taillamp - AR82.10-P-4905RK
MODEL 231
Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Open trunk lid | ||
| 2 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | ||

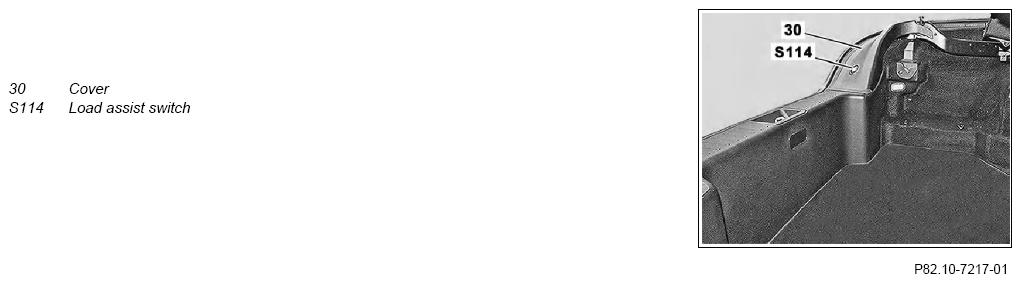

| 3 | Unclip left or right panel (30) at tubular frame upwards | ||
| 4 | Disconnect electrical connector at load assist switch (S114) | When removing left rear lamp unit (E3). | |

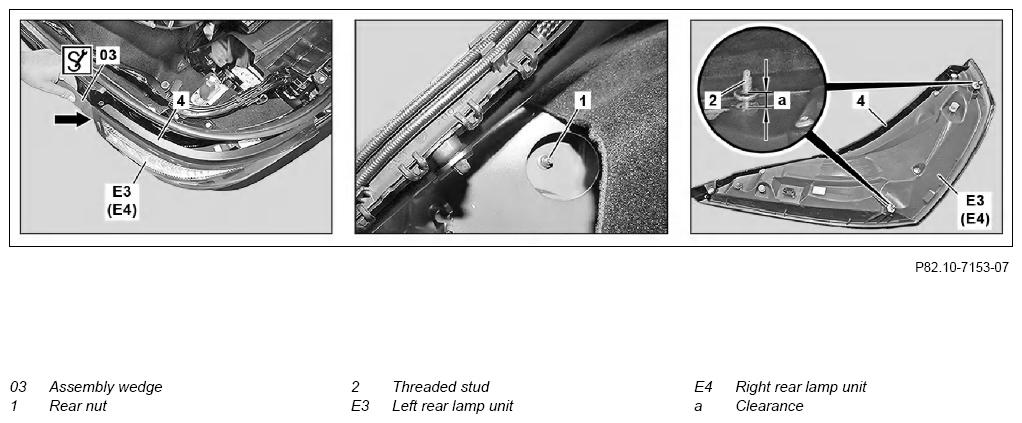

| 5 | Unscrew rear nut (1) at left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 6 | Detach left or right panel at side in trunk | Only if a threaded pin (2) is installed instead of a ball stud at front or center on left rear lamp unit (E3) or right rear lamp unit (E4). |
AR68.30-P-4800RK |
| 7 | Unscrew front or center nut at left rear lamp unit (E3) or right rear lamp unit (E4) | Only if a threaded pin (2) is installed instead of a ball stud at front or center on left rear lamp unit (E3) or right rear lamp unit (E4). | |
| 8 | Unclip left rear lamp unit (E3) or right rear lamp unit (E4) with assembly wedge (03) | Fig 3 | |
| 9 | Disconnect electrical connector from left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 10 | Remove left rear lamp unit (E3) or right rear lamp unit (E4) | ||
| 11 | Transfer threaded pin (2) at front or center into new left rear lamp unit (E3) or right rear lamp unit (E4) | When replacing left rear lamp unit (E3) or right rear lamp unit (E4) and only if a threaded pin (2) is installed instead of a ball stud at front or center in removed part. |
|
| 12 | Install in the reverse order |
