Remove/install left footwell bass speaker - AR82.62-P-7820RK

MODEL 231

Fig 1: Left Footwell Bass Speaker Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 2: Left Footwell Bass Speaker Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 3: Left Footwell Bass Speaker Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 4: Left Footwell Bass Speaker Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Bring driver seat into the rearmost seat position
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with CODE 889 (KEYLESS-GO).
3	Remove brake pedal		AR29.10-P-4597RK
4	Remove accelerator pedal		AR30.12-P-1321RK
5	Remove Active Body Control control unit (N51/2)	With code 487 (Active Body Control (ABC))	AR32.50-P-0023RK
6	Remove door sill molding		AR68.30-P-4100RK

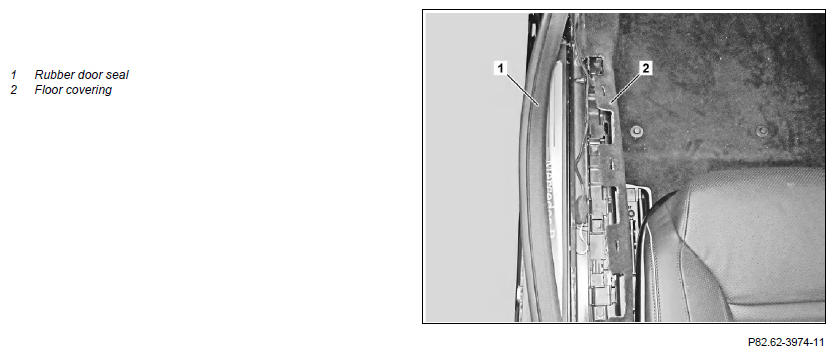

7	Loosen rubber door seal (1) in area of left entrance

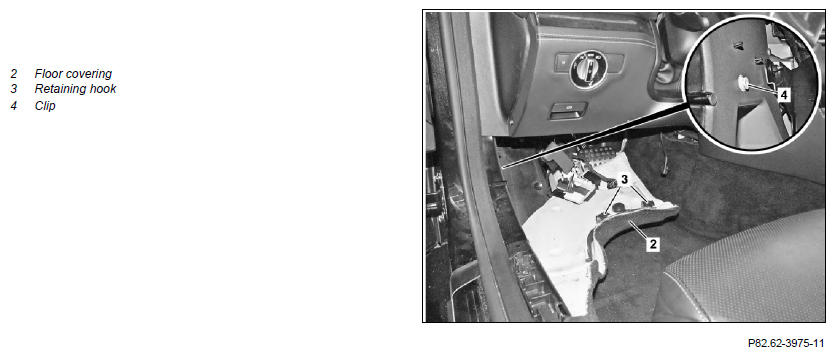

8	Unclip floor covering (2)	Check clip (4) for damage, replace if necessary. Hook retaining hook (3) at door frame.
9	Fold back floor covering (2)	Fold back floor covering (2) carefully. Otherwise the foam filling of the floor covering (2) can tear. Helper required for holding back the floor covering (2) during the further operation steps.

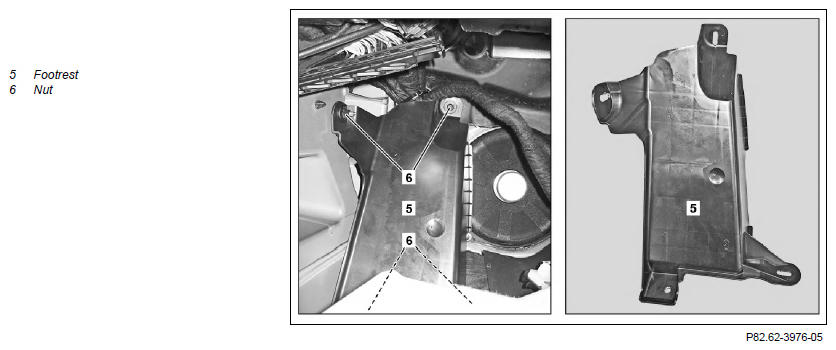

10	Remove footrest (5)	To do this, unscrew nuts (6). Screw on nuts (6) in the correct sequence. To do so, note the markings on the footrest (5).
11	Disconnect electrical connector (7)

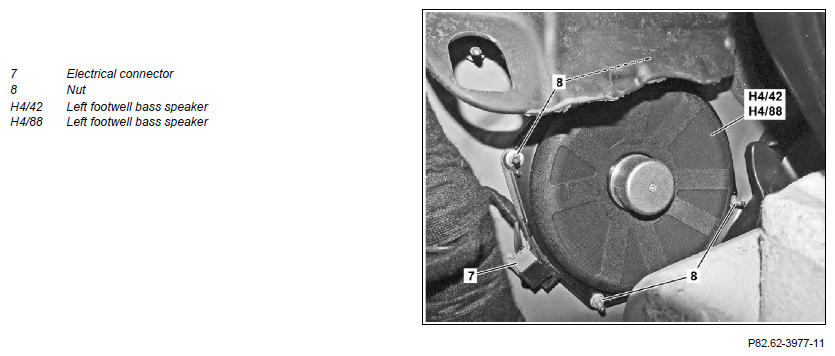

12	Remove left footwell bass speaker (H4/42 or H4/88)	To do so, unscrew nuts (8). Depending on equipment installed, the left footwell bass speaker (H4/42 or H4/88) is installed.
13	Install in the reverse order
