Remove/install brake pedal - AR29.10-P-4597RK

MODEL 231

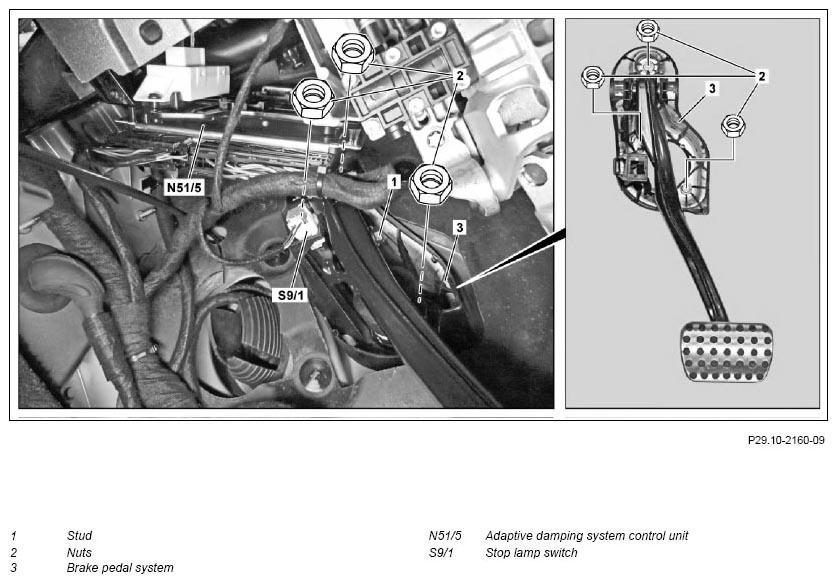

Fig 1: Brake Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left cover below instrument panel		AR68.10-P-1500RK
2	Remove adaptive damping system control unit (N51/5)	MODEL 231 with CODE 486 (Sports suspension) without CODE 487 (Active Body Control (ABC))	AR32.32-P-0500RK
3	Remove brake light switch (S9/1)		AR42.10-P-0040EW
4	Remove screw bolt (1)	Check screw bolt (1) for wear; replace if necessary. Lightly grease screw bolt (1). Long-life grease	*BR00.45-Z-1001-06A
		Stud for thrust rod	*BA29.10-P-1002-02D
5	Unscrew nuts (2) and remove brake pedal system (3)	Do not damage the rubber boot! If the brake pedal system (3) or components of the brake pedal mount are damaged, the brake pedal system (3) must be replaced as a complete unit (with bearing bracket). Nut, brake pedal assembly to body	*BA29.10-P-1001-02D
6	Install in the reverse order

PEDALS, BEARING BRACKET

Number	Designation		MODEL 231
BA29.10-P-1001-02D	Nut, brake pedal assembly to body	Nm	22

PEDALS, BEARING BRACKET

Number	Designation		MODEL 231
BA29.10-P-1002-02D	Stud for thrust rod	Nm	22

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11
