Remove/install WLAN antenna - AR82.85-P-0004RKM
MODEL 231
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

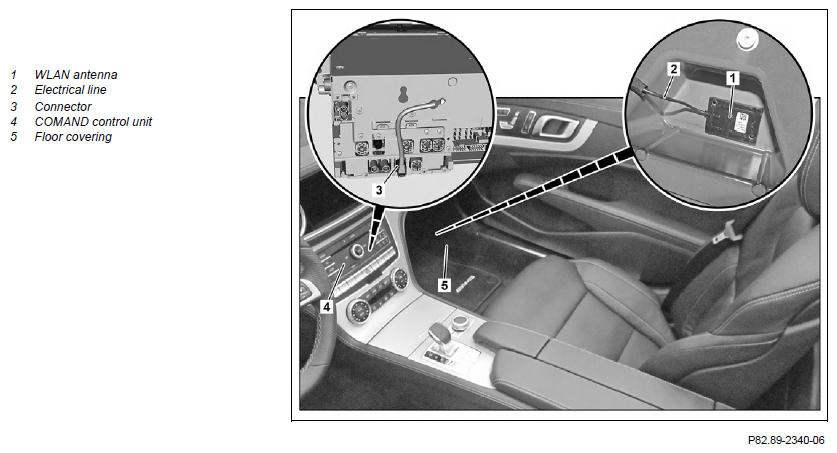

| 1 | Remove glove box | AR68.10-P-1400RK | |
| 2 | Remove COMAND controller unit (4) until electrical connectors on the back of the device are accessible | AR82.85-P-1100RK | |
| 3 | Remove right-hand side entrance strip | AR68.30-P-4100RK | |
| 4 | Place floor covering (5) to one side in area of A-pillar | ||
| 5 | Disconnect plug (3) of WLAN antenna (1) from COMAND controller unit (4) | ||
| 6 | Cut electrical line (2) of WLAN antenna (1) on both ends as near as possible to the instrument panel wiring harness | ||
| 7 | Remove WLAN antenna (1) | ||
| 8 | Clean bonding area of WLAN antenna (1) | The bonding area of the WLAN antenna (1) must be absolutely free of dust and grease. Otherwise adhesion problems of the adhesive material for the WLAN antenna (1) occur. |
|
| 9 | Install in the reverse order |
