Remove/Install Wet Clutch - AR27.51-P-0300MNE
Transmission 725.06/09/163
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||

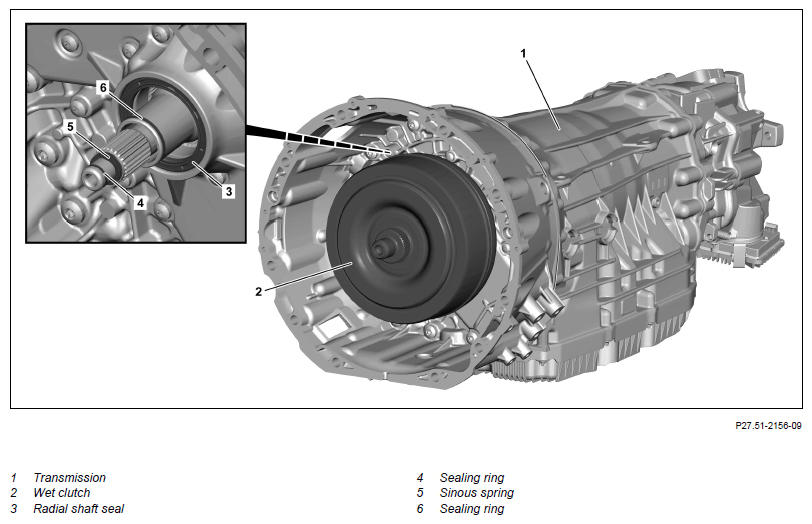

| 1 | Remove transmission (1). | Transmission 725.0 in model 290 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.163 in model 290 with engine 177.8 |
AR27.10-P-0505MNI |
| Transmission 725.09 in model 232 | AR27.10-P-0505SLY | ||
| Transmission 725.06 in model 205 with engine 177 | AR27.10-P-0505LWX | ||
| Transmission 725.09 in model 213 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0505MNE | ||
| Transmission 725.06 in model 217, 222 with engine 177 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0505MNM | ||
| Transmission 725.09 in model 217, 222 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0505MNN | ||
| 2 | Detach wet clutch (2) from transmission input shaft without tilting it. | ||
| 3 | Check whether sinuous spring (5) is seated on transmission input shaft. | If a complaint has been submitted, ↓ Remove sinuous spring (5) from wet clutch (2). |
|
| 4 | Allow transmission oil from wet clutch (2) to drain through a clean rag. | If metal shavings are present on rag, ↓ replace wet clutch (2). |
|
| 5 | Remove sealing rings (4, 6). | Always replace the sealing rings (4, 6). Otherwise leaks may occur. |
|
| 6 | Remove sinuous spring (5). | Always replace sinuous spring (5). Otherwise leaks may occur. |
|
| 7 | Remove radial shaft sealing ring (3). | AR27.40-P-0300MNE | |
| Install | |||
| 8 | Install new radial shaft sealing ring (3). | AR27.40-P-0300MNE | |
| 9 | Install new sealing ring (6). | ||
| 10 | Install new sinuous spring (5). | ||
| 11 | Install new sealing ring (4). | ||
| 12 | Insert wet clutch (2) by moving it lightly to and fro without tilting it. | Do not use force. Otherwise, the axial end stop on the wet clutch (2) will be destroyed. |
|
| 13 | Push lightly on wet clutch (2) to check whether it gives way. | Do not push the wet clutch (2) up to the end stop in the transmission housing. Otherwise, the sinuous spring (5) will lose its preload. |
|
| 14 | Install the transmission (1). | Transmission 725.06 in model 205 with engine 177 | AR27.10-P-0505LWX |
| Transmission 725.09 in model 213 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0505MNE | ||
| Transmission 725.06 in model 217, 222 with engine 177 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0505MNM | ||
| Transmission 725.09 in model 217, 222 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR27.10-P-0505MNN | ||
| Transmission 725.09 in model 232 | AR27.10-P-0505SLY | ||
| Transmission 725.0 in model 290 with engine 177 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.163 in model 290 with engine 177.8 |
AR27.10-P-0505MNI |
