Remove/Install Torque Converter - AR27.20-P-0500-01EWM
Transmission 725.0
| Number | Designation | Transmission 725 with engine 176/177 | Transmission 725 with engine 256/651/654/656 | |
|---|---|---|---|---|
| BE27.20-P-1001-01F | Installation height of torque converter, distance dimension Bolt flange to flange transmission housing | mm | 26, 7 (±2) | 21, 2 (±2) |
| Number | Designation | Transmission 725 with engine 264/274/276/278/64 2 | |
|---|---|---|---|
| BE27.20-P-1001-01F | Installation height of torque converter, distance dimension Bolt flange to flange transmission housing | mm | 31, 2 (±2) |
- Position transmission vertically.

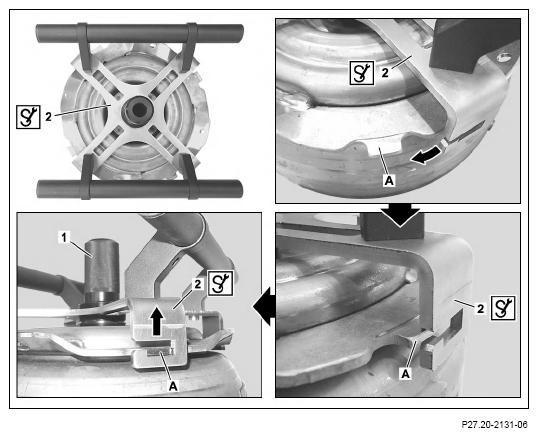

Attach assembly device (2) to torque converter.
To do so, set the height of the assembly device (2) on the knob (1) so that it can be slided over the guide (A) of the torque converter.
Turn assembly device (2) clockwise until guide (A) lies against torque converter.
- Tighten knob (1) until torque converter and
assembly device (2) engage (arrow).
- Remove torque converter without tilting.
-
- If there are metal shavings in oil pan of transmission. Drain transmission oil from the torque converter through a clean cloth.
If metal shavings are present in the cloth,
replace torque converter.
- In event of transmission oil that is burnt or contaminated with wear debris.
Flush out torque converter, oil lines and oil cooler.
Remove torque converter
- If there are metal shavings in oil pan of transmission. Drain transmission oil from the torque converter through a clean cloth.
- Insert torque converter carefully and without tilting.
Do not use force.
Otherwise the axial end stop on the torque converter will be damaged.

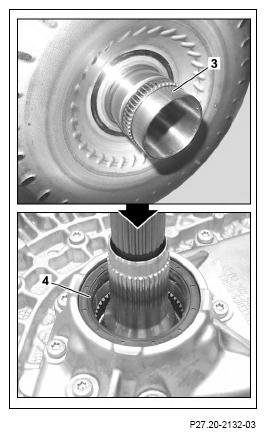

Do not touch or damage the radial shaft sealing ring (4).
Otherwise leaks and damage can occur at the transmission.
Ensure torque converter is correctly seated.
Otherwise the transmission and oil pump will be damaged.
Ensure that the gearing of the drive shaft and of the torque converter align
Insert torque converter
Check that torque converter is seated correctly

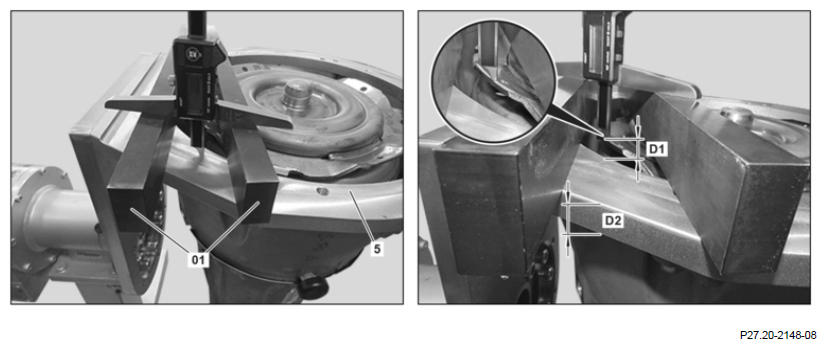

Place parallel gauges (01) on support fixture of transmission.
On the torque converter, the angled threaded connection must be measured on the processing surface.
- Adjust digital vernier caliper from
parallel gauge (01) to support fixture of transmission (5) to "0".
- Add determined dimension (D1) and specified wall thickness of support fixture of transmission (D2=16 mm) together Transmission 725.0 with engine 176
Transmission 725.0 with engine 177
Transmission 725.0 with engine 256
Transmission 725.0 with engine 264
Transmission 725.0 with engine 274
Transmission 725.0 with engine 276
Transmission 725.0 with engine 278
Transmission 725.0 with engine 642
Transmission 725.0 with engine 651
Transmission 725.0 with engine 654
Transmission 725.0 with engine 656.
For a correctly inserted torque converter, the sum of (D1) and (D2) (16 mm) corresponds to the installation position of the torque converter; ignore the sign (+) of value (D1) here.
Detach assembly device (2) from torque converter.
