Remove/Install The Engine Oil Pump Chain Tensioning Device - AR18.10-P-2000MNL
Engine 176 in model 217, 222
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

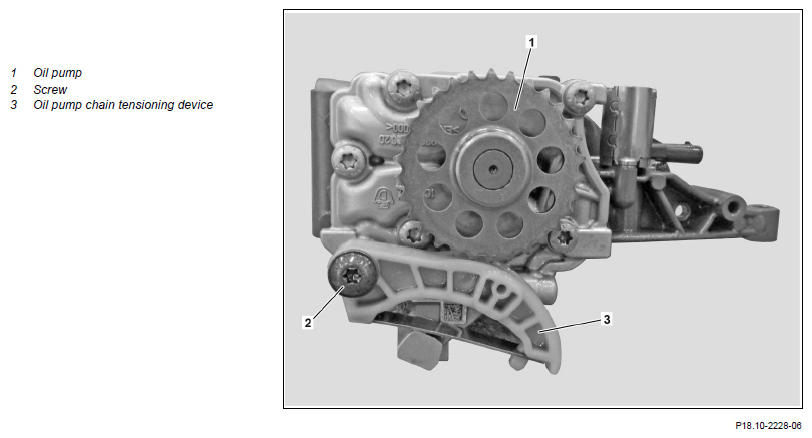

| 1 | Remove oil pump (1) | AR18.10-P-6020MNL | |
| 2 | Remove screw/bolt (2) | *BA18.10-P-1003-01V | |
| 3 | Remove clamping device of oil pump chain (3) | ||
| 4 | Check tensioning device of oil pump chain (3) for damage | In case of a complaint ↓ Replace tensioning device of oil pump chain (3). |
|
| 5 | Install in the reverse order |
OIL PUMP
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA18.10-P-1003-01V | Fit bolt, chain tensioning bracket to oil pump | Nm | 9 |
