Remove/Install Oil Pressure Control Valve On Engine Oil Pump - AR18.10-P-6021MNL
Engine 176 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove oil pan | Engine 176 in model 217, 222 except code M005 (4MATIC) |
AR01.45-P-7500MNL |
| Engine 176 in model 217, 222 with code M005 (4MATIC) |
AR01.45-P-7500MNK | ||
| 2 | Release and disconnect electrical connection for engine oil pump valve (Y130) | ||

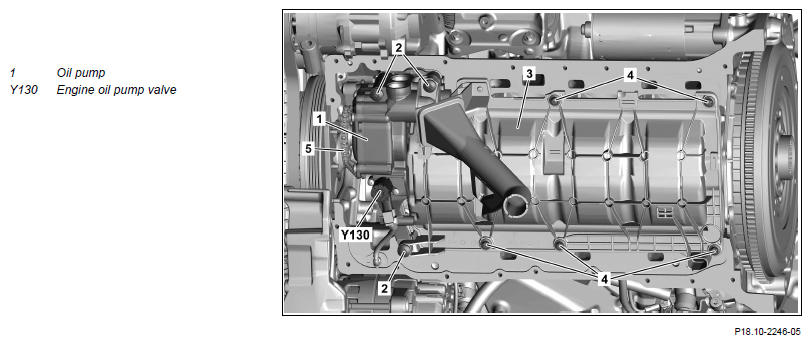

| 3 | Remove engine oil pump valve (Y130) from oil pump (1) | *BA18.10-P-1004-01V | |
| 4 | Install in the reverse order | ||
| 5 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B |
OIL PUMP
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA18.10-P-1004-01V | Bolt, directional control valve to oil pump | Nm | 4 |
