Remove/Install Engine Oil Pump Chain - AR18.10-P-2145MNL
Engine 176 in model 217, 222
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

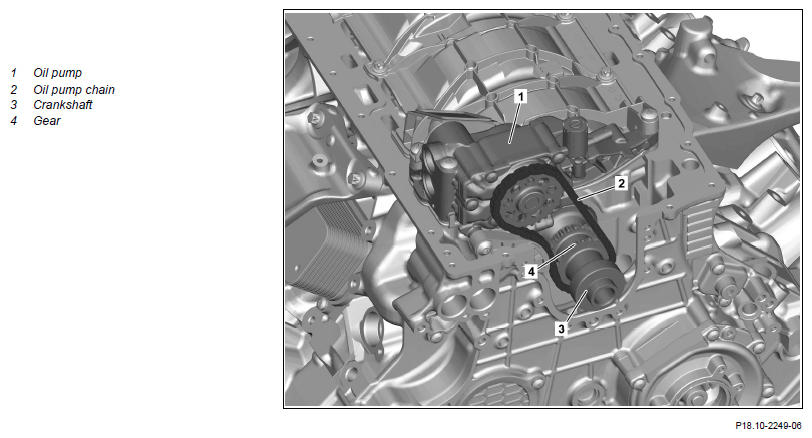

| 1 | Remove oil pump (1) | AR18.10-P-6020MNL | |
| 2 | Take off oil pump chain (2) from gear (4) of crankshaft (3) | ||
| 3 | Check oil pump chain (2) and gear (4) of oil pump drive on crankshaft (3) for damage | If damage is present ↓ Replace oil pump chain (2) and crankshaft (3). |
|
| AR03.20-P-4351MNL | |||
| 4 | Install in the reverse order |
