Remove/Install Lift Solenoid Of Left Intake Camshaft At Rear - AR05.20-P-6551MNL
Engine 176 in model 217, 222
Shown on model 222.186
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury
to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil |
Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove left-hand air filter housing | AR09.10-P-1151MNL | |
| 2 | Release and disconnect electrical connection of CAMTRONIC actuator for intake cylinder 8 (Y49/17) | ||

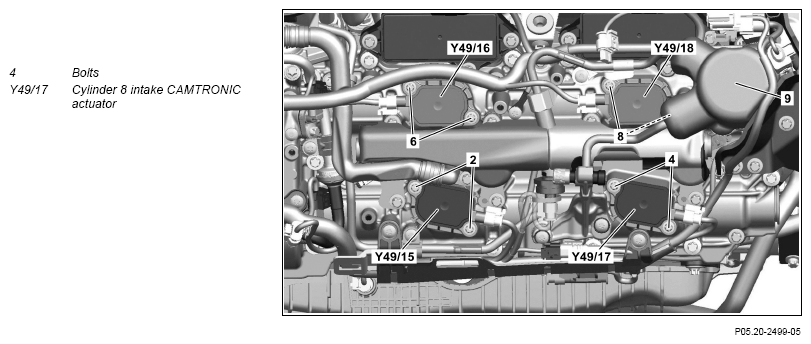

| 3 | Unscrew screws/bolts (4), and remove CAMTRONIC actuator for intake cylinder 8 (Y49/17) | ||
| *BA05.20-P-1004-02C | |||
| 4 | Check that both pins of CAMTRONIC actuator for intake cylinder 8 (Y49/17) are retracted | Do not pull out pins of CAMTRONIC actuator for intake cylinder 8 (Y49/17). Otherwise damage will occur. In case of a complaint ↓ Replace CAMTRONIC actuator for intake cylinder 8 (Y49/17). |
|
| 5 | Install in the reverse order | ||
| 6 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 8 | Install upper engine cover |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA05.20-P-1004-02C | Bolt, lift solenoid to cylinder head cover | Nm | 8 |
