Check Basic Position Of Camshafts - AR05.20-P-6010MNL

Engine 176 in model 217, 222

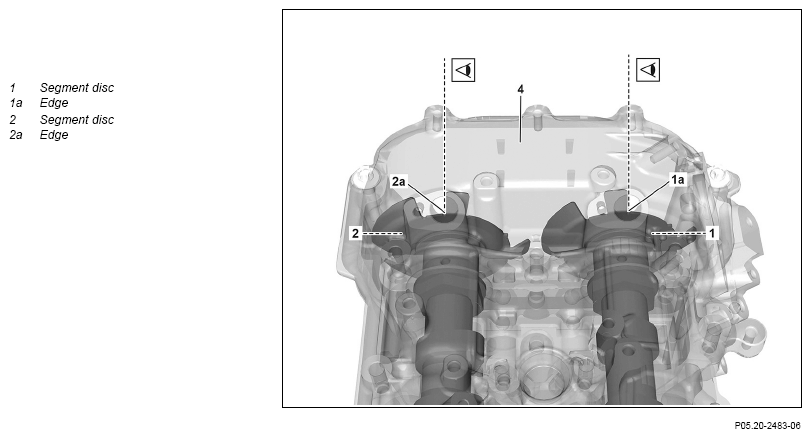

Shown on left cylinder head, 53° crank angle after ignition TDC of cylinder 1

Courtesy of MERCEDES-BENZ USA

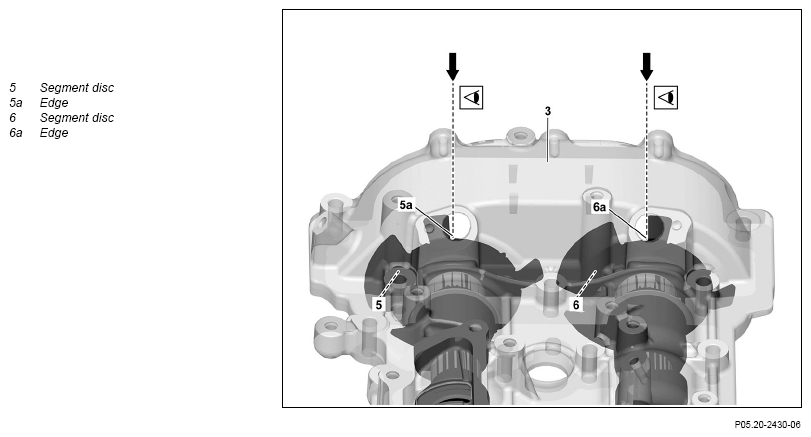

Shown on right cylinder head, 530 crank angle after ignition TDC of cylinder 1

Courtesy of MERCEDES-BENZ USA

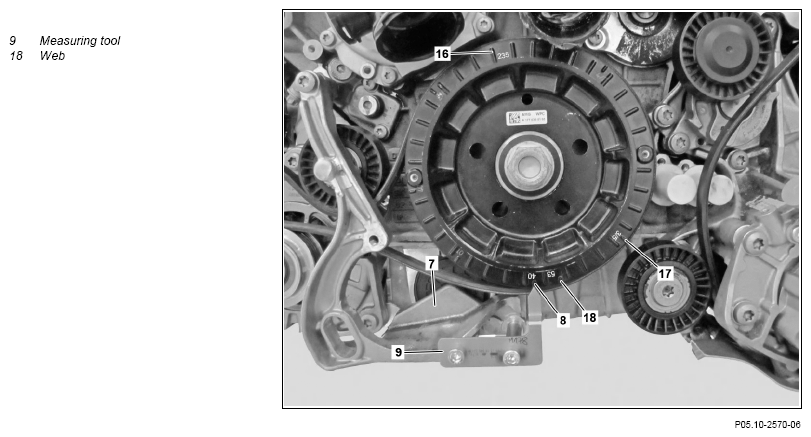

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove position sensors of camshafts.	Position sensors of camshafts on right cylinder bank	AR15.12-P-2149MNL
		Position sensors of camshafts on left cylinder bank	AR15.12-P-2148MNL
		: Do not install upper engine cover until after the leak test.
2	Remove clamping device for the poly-V-belt of the alternator.		AR13.20-P-0010MNL
		: Install center and front engine compartment lining only after leak test has been performed.
3	Attach measuring tool (9) to bracket of tensioning device for poly-V-belt of alternator.		AR01.10-P-1000-01SZ
		Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur. Use pointer 177 589 01 21 01.
		Measuring tool	Fig 2
4	Continue turning engine at center bolt of crankshaft in direction of engine rotation until pointer of measuring tool (9) points to rib (18).	Only turn engine at the center bolt of the crankshaft in the direction of engine rotation using the specified box wrench. Otherwise, damage to the engine or even failure of the engine may occur. Rib (18) corresponds to 53° crank angle after top dead center of cylinder 1.	AR01.10-P-1000-01SZ
		Measuring tool	Fig 2
		Ring wrench	Fig 1
	Check
5	Check basic position of camshafts.	The edges (1a, 2a, 5a, 6a) of the partial segments of the segmented discs (1, 2, 5, 6) must be visible roughly in the middle in the openings of the position sensors of the camshafts. If the segmented discs (1, 2, 5, 6) are not standing centrally, ↓ Continue turning engine one complete revolution (360°) in direction of engine rotation until pointer of measuring tool (9) points to rib (18). If the segmented discs (1, 2, 5, 6) are still not standing centrally in the openings of the position sensors of the camshafts, ↓ Set basic position of camshafts.
			AR05.20-P-6020MNL
6	Install in the reverse order.
	Finishing activity
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Perform engine test run. While doing so, check engine for proper operation and leak tightness

Fig 1: Identifying Ring Wrench (177 589 00 03 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Measuring Tool (177 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
