Remove/Install Rear Engine Mount - AR22.10-P-1160OIA

Engine 176 in model 217, 222

Engine 656 in model 222

Shown on model 222 with engine 656 without code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

Shown on model 222 with engine 176 with code M005 (4MATIC)

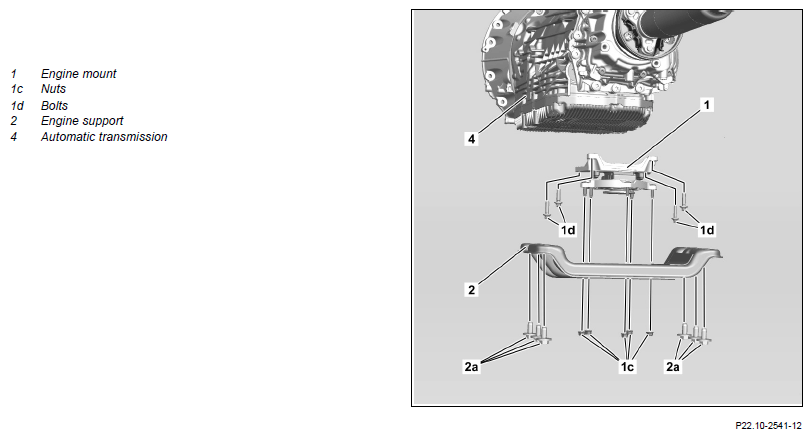

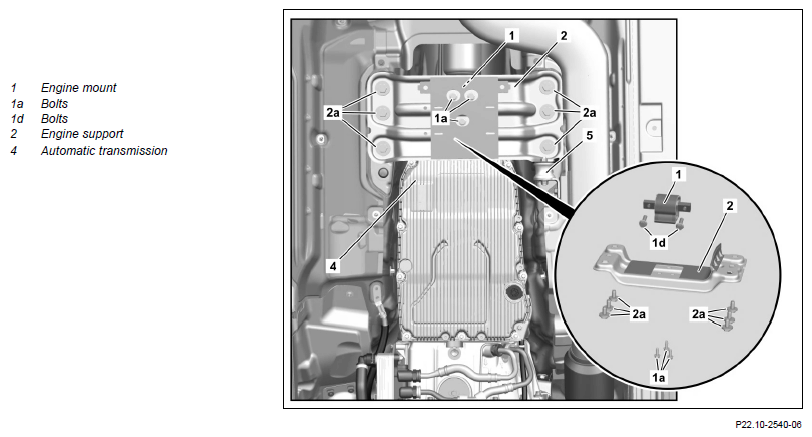

Fig 1: Rear Engine Mount Components Location - Engine 176 In Model 222 (Shown With Code M005)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Secure vehicle on vehicle lift.		AR00.60-P-0100CW
2	Remove rear bottom engine compartment lining.		AR61.20-P-1105LF
3.1	Remove engine carrier (2).	Engine 176 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 656 in model 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR22.10-P-4360OIA
3.2	Remove bolts (1a).	Engine 176 in model 217, 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 656 in model 222 except code M005 (Vehicles with 4MATIC/all-wheel drive)
		Rear engine mount on engine support	*BA22.10-P-1004-03K
4	Lift automatic transmission (4) with major assembly mount and mounting plate approx. 10 mm.	Engine 176 in model 217, 222 except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 656 in model 222 except code M005 (Vehicles with 4MATIC/all-wheel drive)
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
5	Remove screws (1d).
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		Screw/bolt, bracket to transmission	*BA22.10-P-1006-03K
6	Remove engine mount (1) from automatic transmission (4).
7	Install in the reverse order.
