Remove/Install Retaining Lock For Crankshaft - AR03.30-P-5001MNL
Engine 176 in model 217, 222
Shown on model 222
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove lower front, center and rear engine compartment paneling | AR61.20-P-1105LF | |

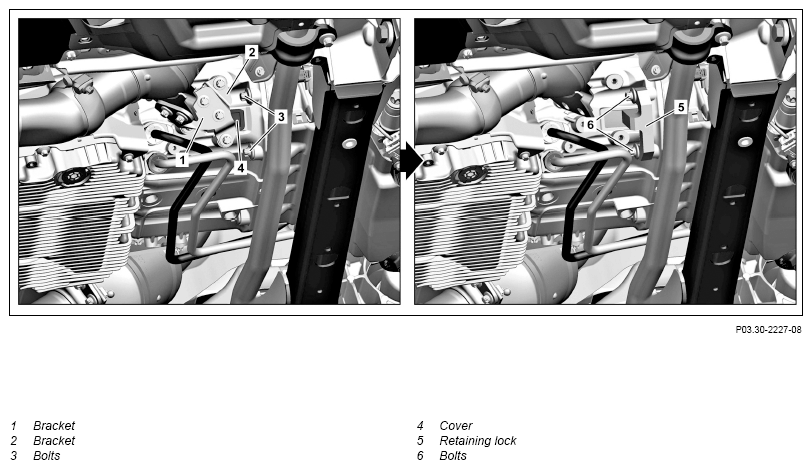

| 2 | Remove brackets (1, 2) on right catalytic converter | *BA49.10-P-1005-02N | |
| *BA49.10-P-1004-02N | |||
| 3 | Remove screw/bolt (3) | *BA27.10-P-1001-04H | |
| 4 | Remove cover (4) at access opening | ||
| 5 | Crank engine at center bolt of crankshaft direction of engine rotation and check ring gear on drive plate for damage | In case of a complaint ↓ Replace drive plate. |
Fig 1 |
| AR03.30-P-8003MNL | |||
| 6 | Insert retaining lock (5) in access opening tighten screws (6) slightly by hand | Fig 2 | |
| Fig 1 | |||
| 7 | Install in the reverse order |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1001-04H | Screw/bolt, transmission to engine | Nm | 39 |
EXHAUST SYSTEM
| Number | Designation | Model 217, 222 with engine 176 | |
|---|---|---|---|
| BA49.10-P-1004-02N | Bolt, bracket for catalytic converter to catalytic converter/bracket | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Model 217, 222 with engine 176 | |
|---|---|---|---|
| BA49.10-P-1005-02N | Bolt, exhaust system bracket to transmission | Nm | 20 |
