Remove/Install Flywheel - AR03.30-P-8002MNM
Engine 177 in model 217, 222
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove transmission with starting clutch | Engine 177 in model 217, 222 with transmission 725.0 with code M005 (4MATIC) | AR27.10-P-0505MNN |
| Engine 177 in model 217, 222 with transmission 725.0 except code M005 (4MATIC) |
AR27.10-P-0505MNM | ||

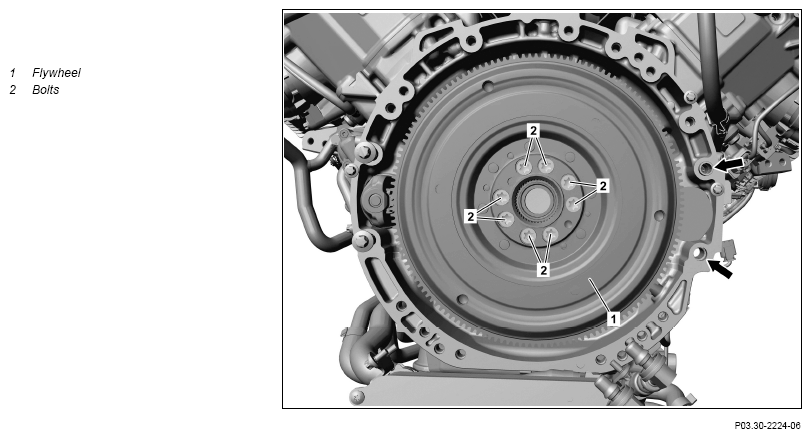

| 2 | Insert retaining lock into bores (arrows) so that the retaining lock engages into the gearing of the flywheel (1) | Fig 2 | |
| 3 | Remove screw/bolts (2) | ||
| Topical note | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA03.30-P-1002-01W | |||
| 4 | Take off flywheel (1) | ||
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it i running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform engine test run and check engine and transmission for proper operation and leak tightness | ||
| 7 | Install lower engine compartment paneling | AR61.20-P-1105LF | |
| 8 | Install upper engine cover |
FLYWHEEL, VIBRATION DAMPER
| Number | Designation | Engine 177 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01W | Bolt, two-mass flywheel to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
