Remove/Install Front Cover On Left Cylinder Head - AR01.30-P-5711MNL
Engine 176 in model 217, 222
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on threaded connections with aluminum screws/bolts | AH00.00-P-0006-01RM | |
| Remove/install | |||
| 1 | Remove left oil separator | AR01.20-P-7901MNL | |
| 2 | Release and disconnect electrical connections for solenoids | AR05.20-P-0004MNL | |

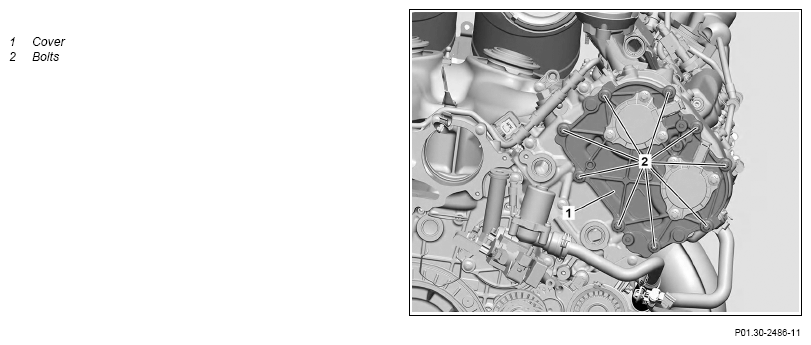

| 3 | Remove screw/bolts (2) | *BA01.30-P-1002-01N | |
| 4 | Remove cover (1) | Do not drive in tools between cover (1) and cylinder head cover or cylinder head. The sealing surface will be damaged otherwise. |
|
| 5 | Remove solenoids | When replacing the cover (1). | AR05.20-P-0004MNL |
| 6 | Clean sealing surfaces on cover (1), cylinder head and cylinder head cover | AR01.00-P-0050-01A | |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| 7 | Apply sealant on cover (1) Notes on sealant path for front cover to cylinder head xxx |
AH01.30-P-1000-02MM | |
| Sealant, Loctite 5970, 50 ml | *BR00.45-Z-1013-01A | ||
| Fig 1 | |||
| 8 | Install in the reverse order | ||
| 9 | Check oil level of engine and correct | ||
| AP18.00-P-1812SKI | |||
| 10 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform engine test run and check engine for proper operation and leak tightness | ||
| 12 | Install lower engine compartment paneling | AR61.20-P-1105LF | |
| 13 | Install upper engine cover |
CYLINDER HEAD
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA01.30-P-1002-01N | Bolt, chain case cover to cylinder head | Nm | 5 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1013-01A | Sealant, Loctite 5970, 50 ml | A 003 989 98 20 10 |
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
