Remove/Install Left Turbocharger - AR09.40-P-6026MNL

Engine 176 in model 217, 222

G15362267Courtesy of MERCEDES-BENZ USA
G15362268Courtesy of MERCEDES-BENZ USA
G15362269Courtesy of MERCEDES-BENZ USA
Fig 1: Left Turbocharger/ATL Components Location - Engine 176 In Model 222
G15362270Courtesy of MERCEDES-BENZ USA
G15362271Courtesy of MERCEDES-BENZ USA
G15362272Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. AS20.00-Z-0001-01A
WARNING Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning
caused by swallowing engine oil
Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
REMOVINGINSTALLING Remove/install
1 Drain off coolant   AR20.00-P-1142MNL
    INSTALLATION IMPORTANT:  Do not install center and front lower engine compartment lining until after leak test.
2 Remove left-hand air filter housing   AR09.10-P-1151MNL
    INSTALLATION IMPORTANT:  Only install top engine cover after the leak test.
3 Remove right air filter housing   AR09.10-P-1152MNL

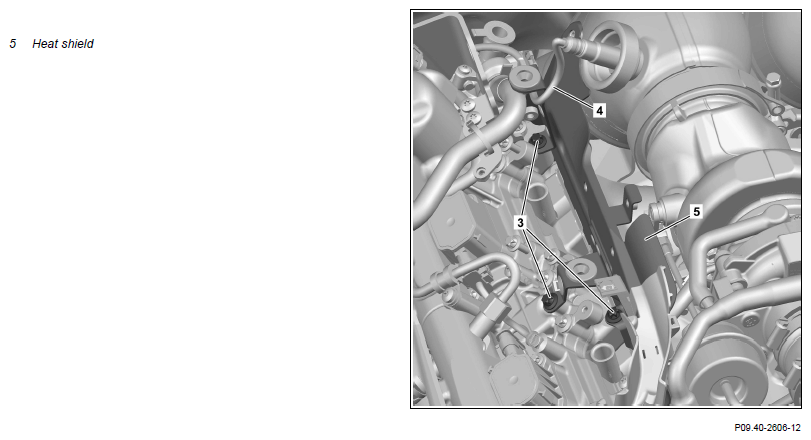

4 Remove engine cable duct from elastomer bearings of heat shield (5) and place to one side INSTALLATION IMPORTANT:  Wet elastomer bearings with lubricating paste.
    Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 *BR00.45-Z-1002-06A
5 Check elastomer bearings of heat shield (5) for damage In case of a complaint
↓
Replace elastomer bearing.

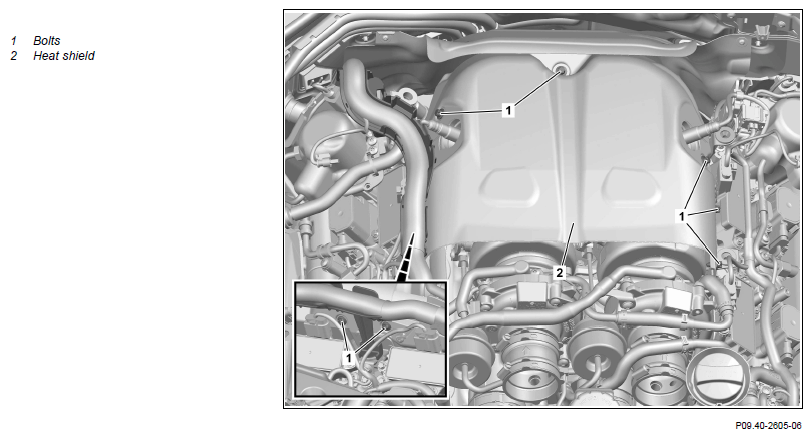

6 Remove screws (1) and remove heat shield (2) in upward direction TORQUE SPECIFICATION Bolt, upper heat shield to bracket/side heat shield *BA09.40-P-1006-01ZA
7 Remove left and right catalytic converter and secure against falling down Right catalytic converter AR49.20-P-0102MNL
    Left catalytic converter AR49.20-P-0101MNL
8 Remove ignition coil for cylinders 5+6 (T4/2)   AR15.12-P-2008MNL

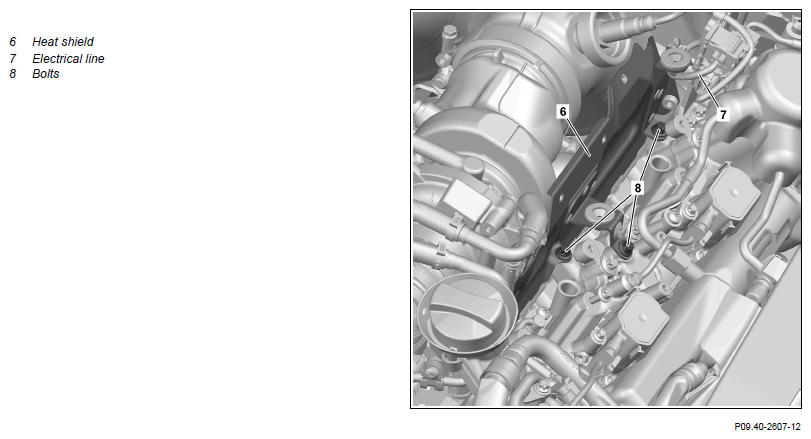

9 Unclip electric line (7) from heat shield (6)
10 Unclip engine wiring harness from heat shield (6)
11 Remove screws (8) and remove heat shield (6) in upward direction TORQUE SPECIFICATION Bolt, side heat shield to cylinder head cover *BA09.40-P-1007-01ZA

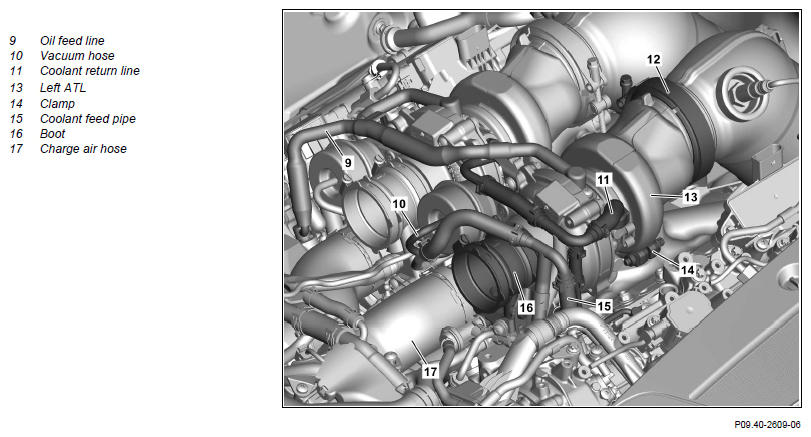

12 Remove boot (16) at left exhaust gas turbocharger (13) and place to one side TORQUE SPECIFICATION Clamp, boot to exhaust gas turbocharger/air filter *BA01.20-P-1003-01J
13 Remove vacuum hose (10) at left exhaust gas turbocharger (13)
14 Remove oil feed line (9) from left exhaust gas turbocharger (13) and seal with suitable stop plugs   AR09.40-P-6040MNL
    SPECIAL TOOL Record plug Fig 2
15 Remove coolant return line (11)   AR20.20-P-1101MNL
16 Remove coolant feed line (15) at left exhaust gas turbocharger (13) and left cylinder head   AR20.20-P-1100MNL
17 Remove upper coolant expansion reservoir for low-temperature circuit and place to one side with connected lines   AR09.41-P-0050MNL
18 Remove charge air hose (17) at left exhaust gas turbocharger (13) TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X
19 Remove clamp (14) INSTALLATION IMPORTANT:  Replace clamp (14).

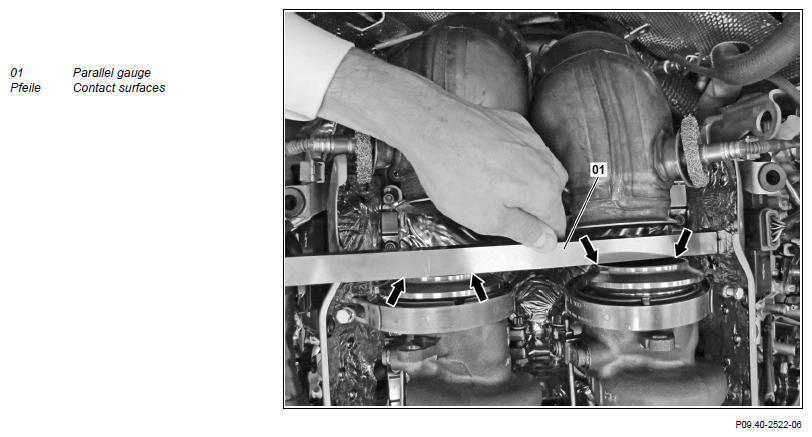

    INSTALLATION IMPORTANT: SPECIAL TOOL Parallel gauge (01) must be flush with contact surfaces (arrows) so that parallelism of right exhaust gas turbocharger to left exhaust gas turbocharger (13) is ensured.
    TORQUE SPECIFICATION Bolt, turbocharger clamp to exhaust manifold *BA09.40-P-1001-01ZA
    SPECIAL TOOL Parallel support Fig 3

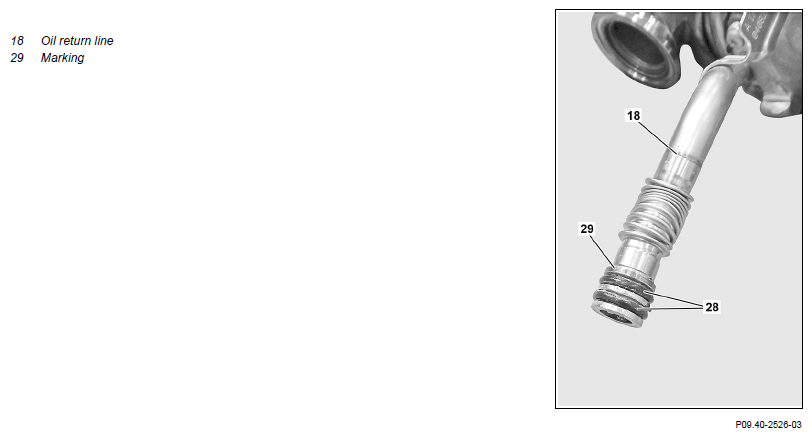

20 Remove left exhaust gas turbocharger (13) with oil return feed line (18) in upward direction INSTALLATION NOTES:
Ensure that marking (29) on oil return feed line (18) is flush with crankcase.
Oil return feed line (18) will otherwise be leaky
INSTALLATION IMPORTANT:  Replace sealing ring on left exhaust manifold.

21 Remove oil return feed line (18) from left exhaust gas turbocharger (13)   AR09.40-P-6041MNL
22 Install in the reverse order
INSPECT Check
23 Check engine oil level and correct if necessary
REFER TO MAINTENANCE     AP18.00-P-1812SKI
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
24 Perform an engine test run and check engine for leaktightness
25 Install center and front lower engine compartment paneling   AR61.20-P-1105LF
26 Install upper engine cover
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 176
BA01.20-P-1003-01J Clamp, boot to exhaust gas turbocharger/air filter Nm 1, 5
TURBOCHARGER

Number Designation Engine 176
BA09.40-P-1001-01ZA Bolt, turbocharger clamp to exhaust manifold Nm 21
TURBOCHARGER

Number Designation Engine 176
BA09.40-P-1006-01ZA Bolt, upper heat shield to bracket/side heat shield Nm 9
TURBOCHARGER

Number Designation Engine 176
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 176
BA09.41-P-1002-01X Bolt, clamp for charge air hose to charge-air distributor Nm 6
Fig 2: Identifying Record Plug (129 589 00 91 00)
G12078802Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Parallel Support (168 589 03 21 00)
G12817080Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 A 000 989 01 60
