Remove/Install Right Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0042MNL
Engine 176 in model 217, 222

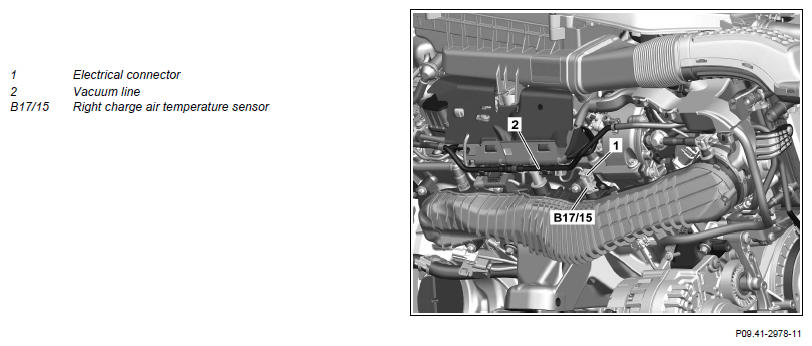

Fig 1: Right Charge Air Temperature Sensor Downstream Of Throttle Valve Components Location - Engine 176 In Model 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove coolant expansion reservoir | AR20.30-P-4949LF | |
| 2 | Remove right air filter housing | AR09.10-P-1152MNL | |

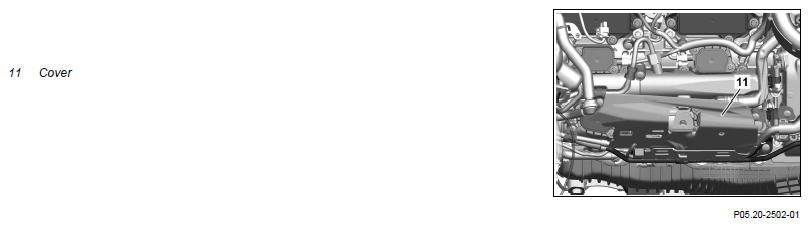

| 3 | Remove cover (11) | ||
| 4 | Unclip vacuum line (2) from cylinder head cover | ||
| 5 | Remove right charge air temperature sensor (B17/15) on charge-air distributor | ||
| 6 | Release and disconnect electrical connection (1) | ||
| 7 | Seal opening on charge-air distributor with suitable stop plugs | Fig 2 | |
| 8 | Check sealing ring of right charge air temperature sensor (B17/15) for damage | If damaged ↓ Install new right charge air temperature sensor (B17/15). |
|
| 9 | Install in the reverse order | ||
| 10 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and check engine for proper function |
