Prepare Spare Tire Well - Ar64.20-P-1245-02LF

Model 222

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

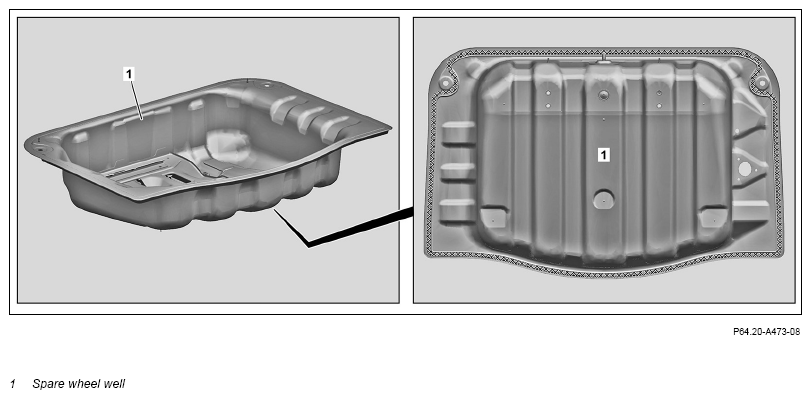

1. Clean bonding surface in spare wheel well (1) in the cross-hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of adhesive material.

2. Prime bonding surface in spare wheel well (1) in the cross-hatched area.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of adhesive material.
