Remove/Install Rear Door Holder - AR72.12-P-2100LFS

Model 222

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove window lifter from rear door	Model 222 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection)
			AR72.12-P-1810LFS

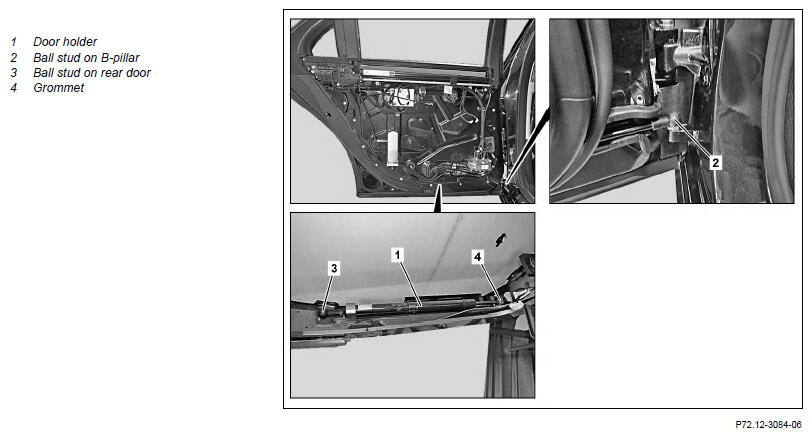

2	Press door holder (1) off of ball head (3) on rear door	When working on unsecured front door ensure that it does not swing completely open. Otherwise the rear door can be damaged.
		Mounting wedge	Fig 1
3	Press door holder (1) off of ball head bolt (3) on B-pillar	Mounting wedge	Fig 1
4	Moisten grommet (4) and front part of door holder (1) with liquid lubricant	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
5	Turn door holder (1), carefully pull inward through grommet (4) and remove from rear door toward rear	Hold grommet (4) from inside. Otherwise the grommet (4) can be detached from the rear door or damaged.
	Install
6	Moisten grommet (4) and front part of door holder (1) with liquid lubricant	Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
7	Insert door holder (1) into rear door and carefully press outward through grommet (4)	: Hold grommet (4) from outside. Otherwise the grommet (4) can be detached from the rear door or damaged.
8	Press door holder (1) onto ball head bolt (3) or B-pillar	Ensure that door holder (1) is properly seated on B-pillar ball head bolt (3).
9	Press door holder (1) onto ball head bolt (2) on rear door	Ensure that door holder (1) is properly seated on ball head bolt on rear door (2).
10	Install power window on rear door	Model 222 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) with code Z14 (Right rear power window with special protection)
			AR72.12-P-1810LFS

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)
